Kirsch FROSTER LABEX 730 PRO-ACTIVE ATEX vrieskast -30°C 700 liter
Art.Nr.
L22110332

Kirsch FROSTER LABEX 730 PRO-ACTIVE ATEX vrieskast -30°C 700 liter

Art.Nr.
L22110332
Temperatuurbereik -5 to -30°C Met circulatiekoeling ATEX- 94/9/EG conformity TÜV certified RS485 interface voor documentatie via PC Kompleet met 5 roosters Energieverbruik 8,7 KW / 24 h Afmetingen intern (bxdxh) 600 x 650 x 1400 mm Gewicht 165 kg
Bekijk alle specificaties
Specificaties
Specificaties
Merk Kirsch
Toepassing vriezer Explosieveilig (ATEX114)
Type Vrieskast
Geschikt voor ladesysteem Ja
Temperatuur -20/30°C
Volume 700 liter
Doorvoer Nee
Productbeschrijving

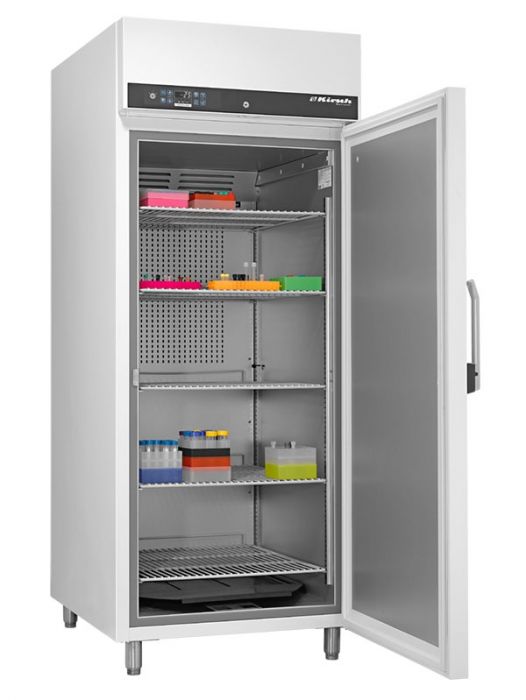

Kirsch FROSTER-LABEX-730 ATEX vrieskast 700 liter

The model FROSTER-LABEX®-730 has 5 vertically adjustable and plastic coated shelves which rest on mountings. This laboratory freezer can also be fitted with wire baskets and aluminium trays on runners at a surcharge. In case of a power failure the device will output optical and acoustic alarms up to 72 hours.

  • 5 shelves, height-adjustable
  • Re-circulating air cooling
  • Explosion proof interior (LABEX®-Intrinsic Safety)
  • ATEX- 94/9/EG conformity TÜV certified
  • Optimized ventilation plates to minimize interior temperature differences
  • Automatic defrosting
  • Meltwater tray for manual emptying
  • Rapid freezing cycle
  • Easy-to-read LED temperature display
  • Easy accessible control panel with key switch
  • Micro-processor controlled temperature and thawing regulation to maximize temperature stability
  • Minimum/maximum temperature memory
  • Optical and acoustical alarm
  • RS-485 interface for computer based temperature documentation
  • Potential free contact for alarm transmission
  • Technical data

    Capacity 700 l
    Temperature setting (approx.) -5 to -30 °C
    Voltage 220 - 240 V
    Frequency 50 Hz
    Power draft 510 Watts
    Average consumption 5,7 KW / 24 h
    Overall dimensions (incl. distance from wall) 77 x 98 x 193-196  (w x d x h in cm)
    Interior dimensions 62 x 77 x 140        (w x d x h in cm)
    Usable dimensions 60 x 66 x 127        (w x d x h in cm)
    Overall dimensions with door
    opened at 90°
    77 x 166                 (w x d in cm)
    Shelf dimensions 59 x 65                (w x d in cm)
    Max. loading capacity per shelf 40 kg
    Weight 165 kg / 200 kg       (net / gross)
