Merk | Krüss |
---|

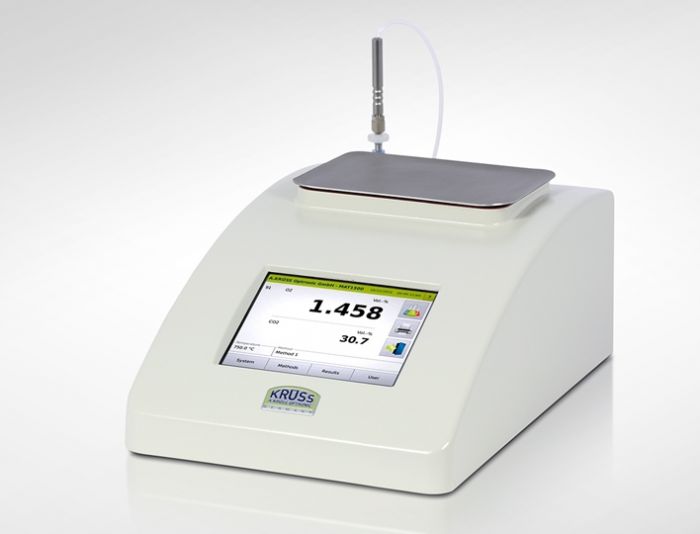

Krüss MAT1200 gasanlalyser met electrochemische cel en NDIR
THE ECONOMICAL SOLUTION FOR O2 AND CO2 MEASUREMENTS
If you need to measure the concentrations of oxygen and carbon dioxide, then the MAT1200 will be the appropriate model. In addition to an electrochemical oxygen cell, it features a non-dispersive infrared sensor (NDIR) for the CO2 measurement over the measuring range of 0 and 50 volume per cent and with a high accuracy of ±0.5 volume per cent. The MAT1200 hence covers most carbon dioxide applications in modified atmosphere packaging – at a very attractive price.
Gas analysers of the MAT1000 series - controlling Modified Atmosphere Packaging
In order to be successful on the market, manufacturers of sensitive or perishable products must be able to guarantee first-class quality over a long period of time. This applies, in particular, to the food industry but also the electronics, pharmaceutical or cosmetics industry.
Modified Atmosphere Packaging (MAP) plays a decisive role in this. Typical protective gases are nitrogen (N2), carbon dioxide (CO2) and oxygen (O2) as well as a mixture of these gases. These are natural components of the ambient air but in modified concentrations that need to be checked. In most food packages, the oxygen concentration is reduced while the carbon dioxide concentration is increased in order to inhibit the growth of aerobic microorganisms. That also allows you to slow down oxidation processes that change the ingredients and thus the taste and colour of the products. Other foodstuff, however, requires a certain oxygen content inside the packaging so it can stay fresh or keep its colour.
But protective gases are not only used in the food industry. Electronic components are also packaged under nitrogen in order to prevent oxidation and corrosion processes. The same applies to pharmaceutical or cosmetic products, for example, in vials or blister packages. In addition, the modified atmosphere stabilises the packaging providing the product with a mechanical protection.
The gas analysers of the MAT1000 series
Quality assurance and ever increasing consumer requirements make it necessary to control modified atmosphere packaging on a regular basis. Gas analysers must deliver fast, reliable measurement results and be easily integrated into the work process – just like our devices from the MAT1000 series. They are used by many companies for the quality inspection in the lab but also at the production line if sensitive or perishable products are filled or packaged. Our Modified Atmosphere Testers (MAT) are suitable for both the random sampling and the permanent monitoring of the gas mixture used on packaging machines. Their solid metal housing with an interchangeable protective cover offers protection against impact and dirt from the outside.
Analysis of headspace volume
In order to check the mixture ratio of the protective gases inside a package, a self-adhesive septum is applied to a sampling point. The suction needle of the gas analyser is then inserted through the septum into the headspace of the package. A simple touch on the touch-screen of the device will ensure that the required sample is automatically drawn in. Within a very short time, the oxygen and carbon dioxide content is measured, the nitrogen content calculated, and the results are shown on the display.
EASY OPERATION AND HIGH SAFETY STANDARD |
---|
As a user of our gas analysers, you enjoy many benefits:
|
Overview of our Gas Analysers
MAT1100 | MAT1200 | MAT1400 | MAT1500 | |
---|---|---|---|---|
AREA OF APPLICATION | Sporadic O2 sample check |
Combined O2 and CO2 measurement |
High sample throughput High O2 concentration |
High sample throughput High O2 concentration Combined O2 and CO2 measurement |
ADVANTAGES | Cost-effective option Fast operational readiness |
Cost-effective option |
Long service life Fast measurement High precision with the lowest O2 concentrations Wide measurement range |
Long service life Fast measurement High precision with the lowest O2 concentrations Wide measurement range |
Low drift | Low drift Environmentally compensated CO2 measurement |
Drift-free | ZrO2: drift-free NDIR: low drift Environmentally compensated CO2 measurement |
|
O2 SENSOR | EC | EC | ZrO2 | ZrO2 |
CO2 SENSOR | NDIR | NDIR | ||
N2 | Arithmetic determination |
Arithmetic determination |
Easy, intuitive operation for maximum efficiency
The gas analysers of the MAT1000 series feature a self-explanatory, well-arranged user interface. A state-of-the-art TFT display ensures a clear, bright visual representation of all the information. The integrated touch-screen allows even non-expert personnel to intuitively and thus quickly operate the device.
- Create your own methods
- Freely assignable shortcut keys for the most important functions
- Optional secondary and tertiary scale to display up to three measured values
- Easy, menu-guided adjustment
- Measurements can be triggered with an optional foot switch
- A selection of six languages (de, en, fr, es, it, pt)
- Intelligent user administration
- Integrated measured data storage: complete recording of all measured data as well as system or method settings
- Documentation of all measured values of the last 999 measurements
- Customise your result reports
Extensive range of services
- Service, maintenance, calibration and adjustment on site
- IQ/OQ/PQ by A.KRÜSS Optronic or certified service partners
- Calibration and adjustment with certified test gases
- Training and application consulting on site
- Spare parts and accessories directly from the manufacturer
- Customer-specific customisation of devices
- Efficient support thanks to a fast confirmability of the customer’s situation based on extensive reports
Interfaces and data export
Extensive interfaces enable the convenient transfer of measured values. Firmware updates can easily be done via USB flash drive.
RS-232 | USB | ETHERNET |
---|---|---|
Serial ASCII printer | USB flash drive Barcode scanner Keyboard Mouse |
Network printer Network share LIMS |
