LHG-Harry Gestigkeit PZ26-7 kookbad oliebad tot 700°C

Art.Nr.

L31PZ26-7

Voor continue gebruik als oliebad of zandbad
Temperatuur tot 700°C
Voltage 230 V, vermogen 1200 watt
Afmetingen (lxbxh) 310 x 310 x 280 mm
Gewicht circa 6,8 kg

Bekijk alle specificaties

Download de PDF

Specificaties

Specificaties
Merk	Harry Gestigkeit - LHG
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee
Max. Temperatuur	700

Productbeschrijving

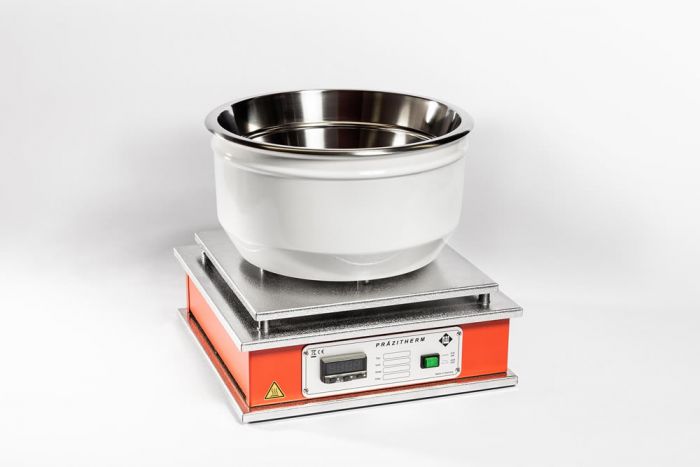

Precision heating baths

Our product range includes a wide assortment of sand, air, oil, water, or multipurpose heating baths. Built up as single, series, or stand units. Control is via a power controller, thermostat, temperature sensor, or even externally through a contactor socket.

Applicable as liquid - oil - air - sandbath for continuous operationThe precision heating baths heat vessels and bath fillings of any kind. A microprocessor-controlled PID-controller carries out the control in connection with a low-mass and fast-reacting temperature sensor. The actual temperature is constantly displayed. The adjustable set temperature appears at the push of a button. These devices are also used in rotary evaporators, for example.

Construction: Tubular heating element and heating chamber are highly heat-resistant stainless steel. The upper jacket is fire-enameled. The bath tank has an insert support for ring sets, perforated plates, and other inserts. The housing is made of stainless steel, and the base is painted. All units are designed for continuous operation. The bath tank features a screw-on device for a support rod (Order No. ST12).

PZ26-4 for temperatures up to 400°C is suitable as a liquid, air, or sand bath. The bath filling can be oils, water, sand, or any other filling which will not attack the surface of the bath, which is made out of high-grade, stainless steel (W-No.1.4301).

PZ26-7 for temperatures up to 700°C offers the same application possibilities, but not as a liquid bath. This device is to be used as a dry, air, or sand bath. Heating is provided by a tightly soldered tubular heating element.
