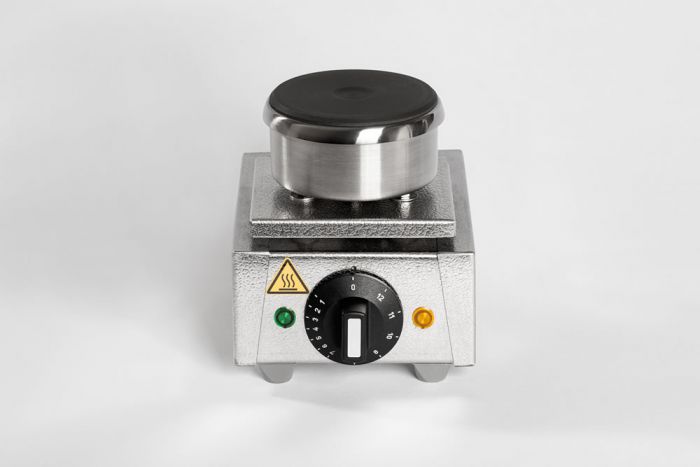

LHG-Harry Gestigkeit SGR1 kookplaat 1 positie Ø150mm+relais

LHG-Harry Gestigkeit kookplaten - heating plates

The heating plates are made of robust gray cast iron, smoothly finished, with concave central expansion recess for warp free operation. Each heating unit with screw-in socket for support rod ø 12 mm (Order No. ST12).

Controllability of type SG... and SGK...Each heating unit can be continuously controlled from 10 - 100% via a power controller.

Controllability of type SGR...Each heating point has an additional built-in electronic switching relay and contactor socket (low voltage) for the contact thermometer. However, this connection is not conditional. If a contact thermometer is connected, it is automatically given priority in the control. Without connection, type SGR... operates like type SG... with variable power regulation.

Series heating units

With our series heating units, several vessels, materials, or specimens can be heated simultaneously, to different degrees; this provides a high degree of comfort and flexibility. Each heating unit is separately adjustable from 10 - 100% via an infinitely variable power controller. All housing parts are constructed from stainless steel and each unit has a screw-on fitting for a supporting rod. The appliances have been specifically designed for non-stop use. Built-in control lamps indicate the respective operating status. Series heating units are available as series hotplates or series heating baths.
