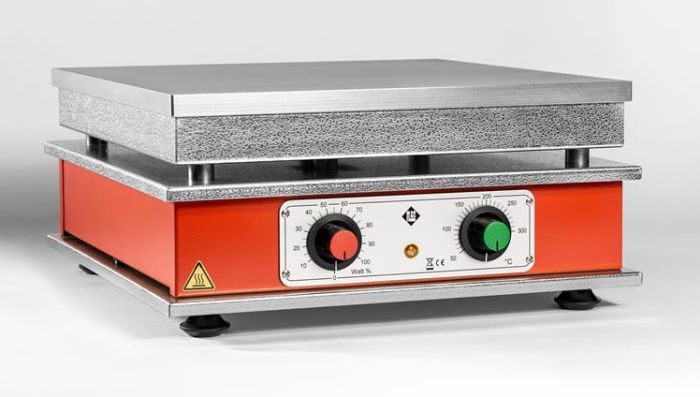

LHG-Harry Gestigkeit TH12 kookplaat 290 x 440 mm 300°C
Art.Nr.
L31TH12
Afmetingen kookplaat 290 x 440 mm
Temperatuurbereik 50-300°C
Maximale belasting 50 Kg.
Voltage 230 V, vermogen 2400 watt
Afmetingen (lxbxh) 290 x 440 x 308 mm
Gewicht circa 14 kg
Merk | Harry Gestigkeit - LHG |
---|---|
Type kookplaat | Enkelvoudig |
Max. Temperatuur | 300 |
Harry Gestigkeit GmbH kookplaten
Hot Plates, electric for continuous operation

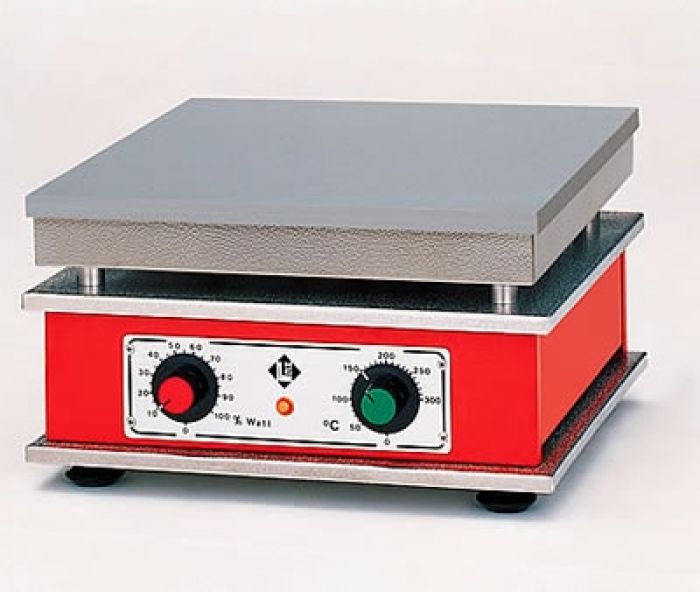

Electrical hotplates with variable temperature control, with or without a thermostatic regulator. Robust construction for continuous perfomance. Aluminium alloy hotplate. Because of the asymmetrical, long-term heating system (hotplate corners and edges are subjected to more heat) an even temperature is guaranteed over the entire heating surface. Asbest-free insulation. The housing is constructed from high-grade, stainless steel No. 1.4301, whereby the central section has been additionally sprayed in orange. Four adjustable feet ensure extra stability. Connecting cable approx. 1,7 m. long, 230 Volt 3200 Watt with Schuko plug.
Hotplates with Performance Control and Thermostatic Controller | ||||||||
Type | Watt | Volt | Temperature | A mm |
B mm |
C mm |
D mm |
Weight kg |
HT 01 | 1150 | 230 | 30..110°C | 300 | 300 | 312 | 312 | 11 |
HT 02 | 1800 | 230 | 50..300°C | |||||
HT 03 | 1800 | 230 | 130..370°C | |||||
HT 11 | 1150 | 230 | 30..110°C | 350 | 350 | 358 | 358 | 13 |
HT 12 | 2200 | 230 | 50..300°C | |||||
HT 13 | 2200 | 230 | 130..370°C | |||||
TH 11 | 1650 | 230 | 30..110°C | 290 | 440 | 308 | 458 | 14 |
TH 12 | 2400 | 230 | 50..300°C | |||||
TH 13 | 2400 | 230 | 130..370°C | |||||
HT 21 | 1800 | 230 | 30..110°C | 350 | 500 | 364 | 514 | 19 |
HT 22 | 2850 | 230 | 50..300°C | |||||
HT 23 | 2850 | 230 | 130..370°C | |||||
HT 31 | 2000 | 230 | 30..110°C | 430 | 580 | 442 | 592 | 26 |
HT 32-230 | 4000 | 230 | 50..300°C | |||||
HT 32-400 | 4000 | 3x400,N+PE | 50..300°C | |||||
HT 33-230 | 4000 | 230 | 130..370°C | |||||
HT 33-400 | 4000 | 3x400,N+PE | 130..370°C | |||||
HB 110 | 1000 | 230 | 30..110°C | 610 | 160 | 200 | 618 | 11 |
HB 300 | 2000 | 230 | 50..300°C |
