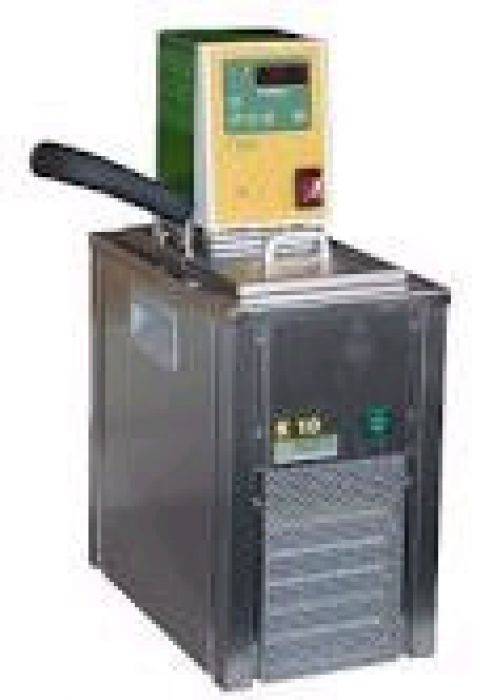

LRT K10-T100 tafel cryostaatbad 3 liter -10 tot +100°C
Art.Nr.
L161A-10857
LRT K10-T100 tafel cryostaatbad 3 liter -10 tot +100°C
Art.Nr.
L161A-10857
Temperatuurbereik -10 tot +100°C
Temperatuurstabiliteit bij 70°C H2O: ±0,1 K
Inhoud 3 liter
Baddiepte 130 mm
Badopening 135 x 105 mm
Gewicht 17,5 kg
Temperatuurstabiliteit bij 70°C H2O: ±0,1 K
Inhoud 3 liter
Baddiepte 130 mm
Badopening 135 x 105 mm
Gewicht 17,5 kg
- Medingen K10-T100
| Merk | Medingen - LRT |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
LRT tafel cryostaten tot -10°C
- K 10 series: bath volume 3 l, bath depth 130 mm
- customized special designs are possible after inquiry
| type | K 10 T 100 | K 10 T 200 |
| temperature range | -10...100°C | -10...100°C |
| temperature stability (at 70°C in water) | ±0,1 K | ±0,01 K |
| bath volume | 3 l | 3 l |
| bath opening | 135 mm x 105 mm | 135 mm x 105 mm |
| bath depth | 130 mm | 130 mm |
| temperature display | LED | digital, graphic display |
| resolution | 0,1 K | 0,1 K |
| temperature setting | digital | digital, touchpanel |
| resolution | 0,1 K | 0,1 K |
| temperature sensor | PTC | Pt 100, linearised |
| interface | - | RS 232 (V.24) |
| external sensor | - | port for Pt 100 |
| program controller | - | 2 applets, each with 10 time / temperature segments |
| pump - max. flow rate | 5 l/min | 8 l/min |
| pump - max. pressure | 0,12 bar | 0,20 bar |
| heating power | 1.000 W | 1.800 W |
| cooling power (at 0°C) | 130 W | 130 W |
| power supply | 230 V / 50Hz | 230 V / 50Hz |
| safety class (DIN 12876) | 3 | 3 |
| width (approx.) | 205 mm | 205 mm |
| depth (approx.) | 335 mm | 335 mm |
| height (approx.) | 540 mm | 540 mm |
| empty weight (approx.) | 17,5 kg | 17,5 kg |
