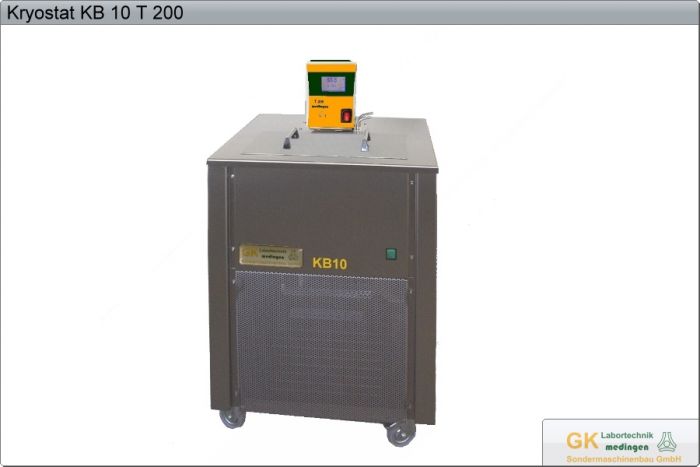

LRT KB10-T200K vloer cryostaat 22 liter -10 tot +200°C
Art.Nr.
L161A-10909
LRT KB10-T200K vloer cryostaat 22 liter -10 tot +200°C
Art.Nr.
L161A-10909
Temperatuurbereik -10 tot +200°C
Temperatuurstabiliteit bij 70°C H2O: ±0,1 K
Inhoud 22 liter
Baddiepte 250 mm
Badopening 230 x 270 mm
Gewicht 95 kg
Temperatuurstabiliteit bij 70°C H2O: ±0,1 K
Inhoud 22 liter
Baddiepte 250 mm
Badopening 230 x 270 mm
Gewicht 95 kg
- Medingen KB10-T200K
| Merk | Medingen - LRT |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
LRT Cryostats to -55°C
- bath volume 22 l, bath depth 250 mm
- floor units with high bath volume and powerful cooling machine
- customized special designs are possible after inquiry
| type | KB 10 T 150 | KB 30 T 200 | KB 40 TC 150 | KB 55 TC 250 |
| type with cryo control | - | KB 30 T 200 K | - | KB 55 TC 250 K |
| temperature range | -10...100°C | -30...100°C (up to 200°C with T 200 K) |
-40...100°C | -55...100°C (up to 200°C with TC 250 K) |
| temperature stability (at 70°C in water) | ±0,1 K | ±0,01 K | ±0,1 K | ±0,01 K |
| bath volume | 22 l | 22 l | 22 l | 22 l |
| bath opening | 230 mm x 270 mm | 230 mm x 270 mm | 230 mm x 270 mm | 230 mm x 270 mm |
| bath depth | 250 mm | 250 mm | 250 mm | 250 mm |
| temperature display | LED | digital, graphic display | LED | digital, graphic display |
| resolution | 0,1 K | 0,1 K | 0,1 K | 0,1 K |
| temperature setting | digital | digital, touchpanel | digital | digital, touchpanel |
| resolution | 0,1 K | 0,1 K | 0,1 K | 0,1 K |
| temperature sensor | Pt 100 | Pt 100, linearised | Pt 100 | Pt 100, linearised |
| interface | - | RS 232 (V.24) | - | RS 232 (V.24) |
| external sensor | - | port for Pt 100 | - | port for Pt 100 |
| program controller | - | 2 applets, each with 10 time / temperature segments | - | 2 applets, each with 10 time / temperature segments |
| pump - max. flow rate | thrust: 5 l/min | thrust: 8 l/min | thrust: 20 l/min suck: 18 l/min |
thrust: 20 l/min suck: 18 l/min |
| pump - max. pressure | thrust: 0,12 bar | thrust: 0,20 bar | thrust: 0,30 bar suck: 0,20 bar |
thrust: 0,20 bar suck: 0,20 bar |
| heating power | 1.800 W | 1.800 W | 1.800 W | 1.800 W |
| cooling power (at 0°C) | 400 W | 500 W | 700 W | 950 W |
| cooling power (at -10°C) | 200 W | 350 W | 600 W | 800 W |
| power supply | 400 V / 50Hz | 400 V / 50Hz | 400 V / 50Hz | 400 V / 50Hz |
| safety class (DIN 12876) | 3 | 3 | 3 | 3 |
| width (approx.) | 535 mm | 534 mm | 535 mm | 535 mm |
| depth (approx.) | 570 mm | 570 mm | 570 mm | 570 mm |
| height (approx.) | 1.020 mm | 1.020 mm | 990 mm | 990 mm |
| empty weight (approx.) | 95 kg | 100 kg | 102 kg | 105 kg |
