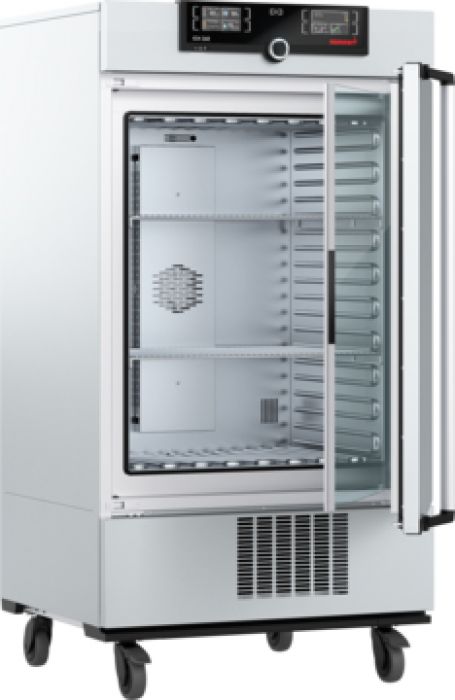

Memmert ICH260 klimaatkast -10-60°C 10-80% rH 256 liter
Art.Nr.
L1326ICH260

Memmert ICH260 klimaatkast -10-60°C 10-80% rH 256 liter

Art.Nr.
L1326ICH260
Volume 256 liter
Met geregelde vochtigheid, rH van 10 tot 80%
Temperatuurbereik -10 - +60°C (zonder vocht)
Temperatuurbereik +10 - +60°C (met vocht)
Koelen middels compressor, koelgas R133a
Inclusief AtmoControl software
Interfaces Ethernet LAN; USB
Vermogen 220V circa 1350 watt
Afmeting intern (bxdxh) 640 x 500 x 800 mm
Inclusief 2 draadroosters
Gewicht circa 153 kg
Wordt geleverd met 2.5 l jerrycan voor demimater (zonder water)
Bekijk alle specificaties
Specificaties
Specificaties
Merk Memmert
Licht Nee
Volume 256 liter
Min. Temperatuur -10
Max. Temperatuur 60
Productbeschrijving

Memmert ICH260 klimaatkast -10 - +60°C 256 liter

Ventilation & control

  • forced air circulation in working chamber adjustable from 10 to 100 % in 10 % steps
  • no drying-up of the load caused by the cooling device due to separation of thermal jacket from interior
  • adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays
  • energy-saving use of CFC-free cooling/heating system (refrigerant R134a)
  • highly efficient automatic defrosting system
  • integral fault diagnostics for temperature and humidity control
  • 2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value
  • Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • parameters adjustable on ControlCOCKPIT: temperature (Celsius or Fahrenheit), fan speed, relative humidity, programme time, time zones, summertime/wintertime
  • SetpointWAIT function - the process time does not start until the set temperature is reached
  • AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
  • Setting of languages on ControlCOCKPIT: German/English/Spanish/French
  • resolution of display for setpoint and actual temperature values 0.1°C
  • calibration facility directly at ControlCOCKPIT for three freely selectable values each, temperature/humidity/CO2
  • humidity supply with distilled water from external tank by self-priming pump
  • programme stored in case of power failure
  • incl. works calibration certificate for +10°C and +37°C, 60 % rh at +30°C

Humidifying & dehumidifying system

  • active humidifying and de-humidifying adjustable from 10-80 % rh with digital display of relative humidity - resolution of display 0.1 %, setting accuracy 0.5 %
  • humidity supply with distilled water from external tank by self-priming pump
  • humidification by hot steam generator

Multiple overtemerature protection

  • with audible and visual alarm
  • over- and undertemperature monitor TWW, protection class 3.3 or adjustable temperature limiter TWB, protection class 2, selectable on display
  • additionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature, compressor in case of undertemperature
  • mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 10°C above nominal temperature

Textured stainless steel casing

  • w x h x d: 824 x 1552 x 734 mm
  • fully insulated stainless steel door with
    2-point locking (compression door lock)
  • inner glass door
  • rear zinc-plated steel
  • on lockable castors

Interior heating concept

  • w x h x d: 640 x 800 x 500 mm, 256 l
  • air jacket heating system for gentle all-around heating
  • 2 stainless steel grids
  • Max. loading of chamber: 200 kg

Temperature range

  • from -10°C up to +60°C without humidity

Voltage / power rating

  • 230 V (+/- 10 %), 50/60 Hz / approx. 1.350 W
