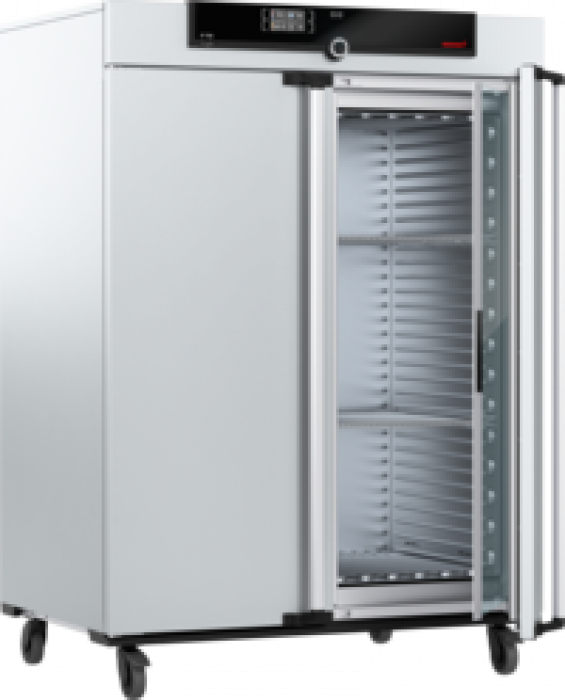

Memmert IF750 broedstoof met ventilator 749 liter

Art.Nr.

L1326IF750

Inhoud 749 liter
Met ventilator
Single display met touchscreen
Afmeting intern (lxbxh): 1040 x 600 x 1200 mm
Temperatuurbereik KT+5 tot +80°C
RVS Behuizing en interieur
Makkelijk schoon te maken
Overtemperatuur alarm
Inclusief 2 draadroosters (max. 14 mogelijk)
Gewicht circa 217 kg

Bekijk alle specificaties

Download de PDF

Specificaties

Specificaties
Merk	Memmert
SafeSens pH monitoring	Nee
Stapelbaar	Nee
Timelapse functionaliteit	Nee
Licht	Nee
Volume	749 liter
Min. Temperatuur	30
Max. Temperatuur	80

Productbeschrijving

Memmert IF750 broedstoof & incubator Generation 2012

Memmert Generation 2012 IN/IF en INplus/IFplus broedstoven & incubatoren

Nieuwe bediening Single en Twin display en software Atmo Control (zie ook video onderaan deze site)
De plus modellen zijn voorzien van het Twin display en bieden de mogelijkheid voor uitgebreide programmering en registratie
Nieuwe deurklinken zijn makkelijk te openen ook met 1 hand, elleboog of knie

Ventilation & Control

orced air circulation by quiet air turbine, adjustable in 10 % steps
adjustment of pre-heated fresh air admixture by air flap control in 10 % steps
vent connection with restrictor flap
adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display
self-diagnostics for fault analysis
1 Pt100 sensor DIN class A in 4-wire-circuit
Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
parameters adjustable on ControlCOCKPIT: temperature (Celsius or Fahrenheit), fan speed, air flap position, programme time, time zones, summertime/wintertime
SetpointWAIT function - the process time does not start until the set temperature is reached
AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand).
Setting of languages on ControlCOCKPIT: German/English/Spanish/French
resolution of display for setpoint and actual temperature values 0.1°C
calibration facility directly at ControlCOCKPIT for three freely selectable temperature values
programme stored in case of power failure
incl. works calibration certificate for +37°C

Overtemperatur protection (double)

adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature

Textured Stainless Steel casting

w x h x d: 1224 x 1726 x 784 mm
2 fully insulated stainless steel door with 2-point locking (compression door lock)
inner glass door
rear zinc-plated steel
on lockable castors

Interior - heating concept

w x h x d: 1040 x 1200 x 600 mm, 749 l, Depth (less 39 mm for fan)
easy-to-clean interior,made of stainless steel,reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
1 stainless steel grid
Max. loading of chamber: 300 kg
