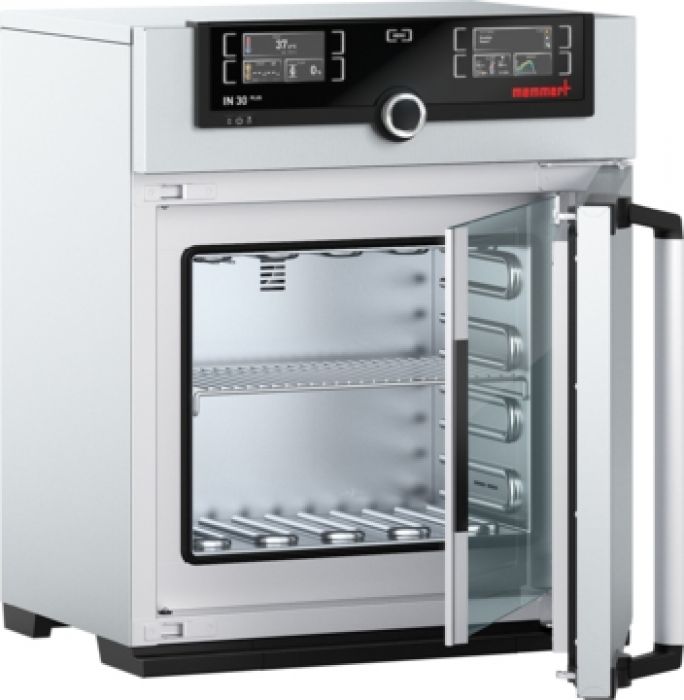

Memmert IN30plus broedstoof zonder ventilator 32 liter
Art.Nr.
L1326IN30PLUS

Memmert IN30plus broedstoof zonder ventilator 32 liter

Art.Nr.
L1326IN30PLUS

Inhoud 32 liter
Natuurlijke luchtcirculatie
Twin display met touchscreen
Afmeting intern (lxbxh): 400 x 250 x 320 mm
Temperatuurbereik KT+ 5 tot +80°C
RVS Behuizing en interieur
Makkelijk schoon te maken
Over- en ondertemperatuur alarm
Inclusief 1 draadrooster (max. 3 mogelijk)
Gewicht circa 48 kg

Bekijk alle specificaties
Opvolger van...
Specificaties
Specificaties
Merk Memmert
SafeSens pH monitoring Nee
Stapelbaar Ja
Timelapse functionaliteit Nee
Licht Nee
Volume 32 liter
Min. Temperatuur 30
Max. Temperatuur 80
Productbeschrijving

Memmert IN30plus broedstoof / incubator

  • Nieuwe bediening Single en Twin display en software Atmo Control (zie ook video onderaan deze site)
  • De plus modellen zijn voorzien van het Twin display en bieden de mogelijkheid voor uitgebreide programmering en registratie
  • Nieuwe deurklinken zijn makkelijk te openen ook met 1 hand, elleboog of knie

Ventilation & Control

  • natural convection
  • adjustment of pre-heated fresh air admixture by air flap control in 10 % steps for each segment individually
  • vent connection with restrictor flap
  • adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays
  • self-diagnostics for fault analysis
  • 2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value
  • Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • parameters adjustable on ControlCOCKPIT: temperature (Celsius or Fahrenheit), air flap position, programme time, time zones, summertime/wintertime
  • SetpointWAIT function - the process time does not start until the set temperature is reached
  • AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
  • Setting of languages on ControlCOCKPIT: German/English/Spanish/French
  • resolution of display for setpoint and actual temperature values 0.1°C
  • calibration facility directly at ControlCOCKPIT for three freely selectable temperature values
  • programme stored in case of power failure
  • fixed sterilisation programme (4 hours/160°C) for sterilisation of working chamber, not for sterilising the load
  • incl. works calibration certificate for +37°C

Multiple overtemperatur protection

  • with audible and visual alarm
  • overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display
  • additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
  • mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature

Textured Stainless Steel casting

  • w x h x d: 585 x 704 x 434 mm
  • fully insulated stainless steel door with 2-point locking (compression door lock)
  • inner glass door
  • rear zinc-plated steel

Interior - heating concept

  • w x h x d: 400 x 320 x 250 mm, 32 l
  • easy-to-clean interior,made of stainless steel,reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
  • 1 stainless steel grid
  • Max. loading of chamber: 60 kg

Temperature Range

  • min.5°C above ambient up to +80°C

Voltage / Power Rating

  • 230 V (+/- 10 %), 50/60 Hz / approx. 1.600 W
