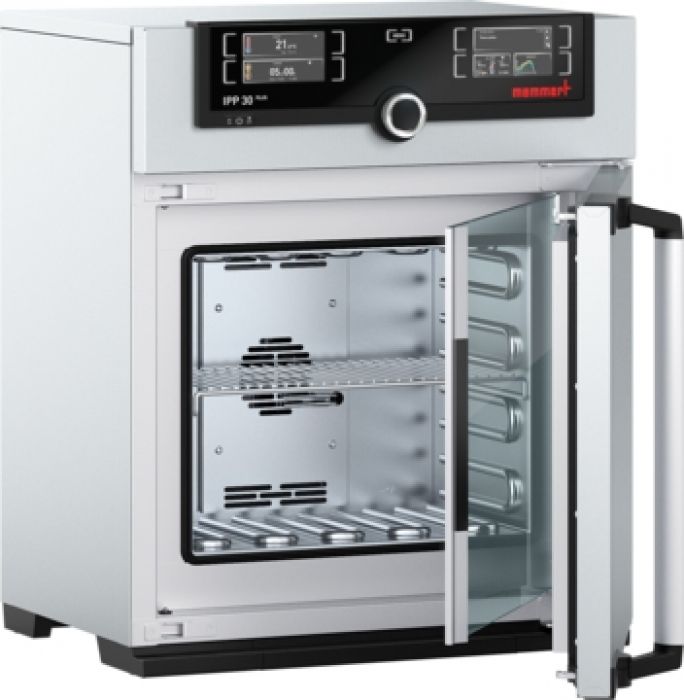

Memmert IPP30plus koelbroedstoof 32 liter 0 tot +70°C

Memmert IPP koelbroedstoven met Peltier techniek

Memmert Generation 2012 IPP koelbroedstoven

• Nieuwe bediening Single en Twin display en software Atmo Control (zie ook video onderaan deze site)
• De plus modellen zijn voorzien van het Twin display en bieden de mogelijkheid voor uitgebreide programmering en registratie
• Nieuwe deurklinken zijn makkelijk te openen ook met 1 hand, elleboog of knie

Ventilation & Control

• forced ventilation by Peltier fan
• adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays
• self-diagnostics for fault analysis
• 2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value
• Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
• parameters adjustable on ControlCOCKPIT: temperature (Celsius or Fahrenheit), programme time, time zones, summertime/wintertime
• SetpointWAIT function - the process time does not start until the set temperature is reached
• AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
• Setting of languages on ControlCOCKPIT: German/English/Spanish/French
• resolution of display for setpoint and actual temperature values 0.1°C
• calibration facility directly at ControlCOCKPIT for three freely selectable temperature values
• programme stored in case of power failure
• incl. works calibration certificate for +10°C and +37°C

Multiple overtemperatur protection

• with audible and visual alarm
• over- and undertemperature monitor TWW, protection class 3.3 or adjustable temperature limiter TWB, protection class 2, selectable on display
• additionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating function is switched off in case of overtemperature, cooling function in case of undertemperature

Textured Stainless Steel casting

• w x h x d: 585 x 704 x 524 mm
• fully insulated stainless steel door with
  2-point locking (compression door lock)
• inner glass door
• rear zinc-plated steel

Interior - heating concept

• w x h x d: 400 x 320 x 250 mm, 32 l
• energy-saving Peltier heating-/cooling system integrated in the rear (heat pump principle)
• 1 stainless steel grid
• Max. loading of chamber: 60 kg

Heating- and cooling system

• energy-saving Peltier heating-/cooling system integrated in the rear (heat pump principle)

Temperature Range

• from 0°C to +70°C

Voltage / Power Rating

• 230 V (+/- 10 %), 50/60 Hz / approx. 160 W
