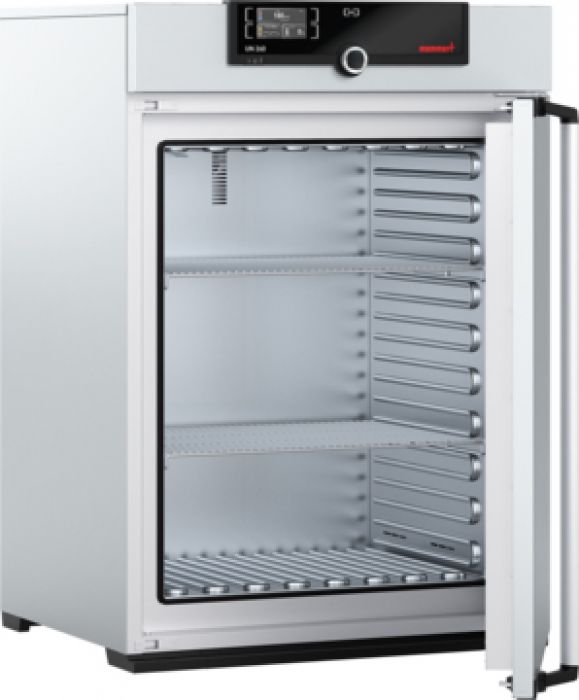

Memmert UN260 droogstoof zonder ventilator 256 liter
Art.Nr.
L1326UN260
Inhoud 256 liter
Natuurlijke luchtcirculatie
Single display met touchscreen
Afmeting intern (lxbxh): 640 x 500 x 800 mm
Afmetingen extern z. handvat + 56 mm (bxdxh): 824 x 684 x 1183 mm
Temperatuurbereik KT+5 tot +300°C
RVS Behuizing en interieur
Makkelijk schoon te maken
Overtemperatuur alarm
Inclusief 2 draadroosters (max. 9 mogelijk)
Gewicht circa 110 kg
Merk | Memmert |
---|---|
Volume | 256 liter |
Max. Temperatuur | 300 |
Memmert UN 260 droogstoof - drying oven
Memmert Generation 2012 UN/UF en UNplus/UFplus droogstoven
- Nieuwe bediening Single en Twin display en software Atmo Control (zie ook video onderaan deze site)
- De plus modellen zijn voorzien van het Twin display en bieden de mogelijkheid voor uitgebreide programmering en registratie
- Nieuwe deurklinken zijn makkelijk te openen ook met 1 hand, elleboog of knie
Ventilation & Control
- natural convection
- adjustment of pre-heated fresh air admixture by air flap control in 10 % steps
- vent connection with restrictor flap
- adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display
- self-diagnostics for fault analysis
- 1 Pt100 sensor DIN class A in 4-wire-circuit
- Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
- parameters adjustable on ControlCOCKPIT: temperature (Celsius or Fahrenheit), air flap position, programme time, time zones, summertime/wintertime
- SetpointWAIT function - the process time does not start until the set temperature is reached
- AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand).
- Setting of languages on ControlCOCKPIT: German/English/Spanish/French
- resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED)
- calibration facility directly at ControlCOCKPIT for three freely selectable temperature values
- programme stored in case of power failure
- incl. works calibration certificate for +160°C
Overtemperatur protection (double)
adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
Textured Stainless Steel casting
- w x h x d: 824 x 1183 x 684 mm
- fully insulated stainless steel door with
2-point locking (compression door lock) - rear zinc-plated steel
Interior - heating concept
- w x h x d: 640 x 800 x 500 mm, 256 l
- easy-to-clean interior,made of stainless steel,reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
- 2 stainless steel grids
- Max. loading of chamber: 300 kg
Temperature Range
- min.5°C above ambient up to +300°C
Voltage / Power Rating
- 230 V (+/- 10 %), 50/60 Hz / approx. 3.400 W
