Umega droogoven 200 liter 200°C

Art.Nr.

L325200/200 LSN11

Maximum temperatuur 200°C
Inclusief twee stuks RVS legborden
Zeer snelle opwarmtijd (45 minuten)

Zeer goede temperatuur stabiliteit en uniformiteit in interieur
Op krachtstroom (230Volt) 1 kW
Interieur van 200 liter
Afmeting intern (lxbxh): 710 x 610 x 460 mm

Weegt 77 kg

Bekijk alle specificaties

Download de PDF

Specificaties

Specificaties
Merk	Umega
Volume	200 liter
Max. Temperatuur	200

Productbeschrijving

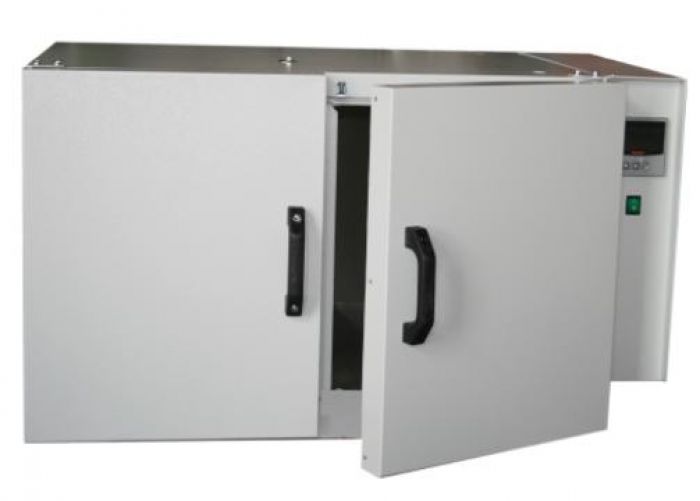

Umega 200/200 LSN11 droogoven 200 liter 200°C

Maximum temperatuur 200°C
Het interieur van RVS, volledig geïsoleerd
Buitenzijde staal met poedercoating
Temperatuurregelaar uitgevoerd met OMRON E5CC voor exact gestuurde opwarming oven.
Omron Solid state relais schakeling
Schakelkast aan rechterzijde
Inclusief twee stuks RVS legbordon
Zeer snelle opwarmtijd (45 minuten)
Deursluiting hermetisch, voorzien van siliconen rand, waardoor geen lekkage langs de randen
Zeer goede temperatuur stabiliteit en uniformiteit in interieur
Lage temperatuur aan buitenzijde door optimale isolatie. (100mm)
Op krachtstroom (230Volt) 1 kW
Interieur van 200 liter
Afmeting intern (lxbxh): 710 x 610 x 460 mm
Weegt 77 kg

SNOL 200/200 LSN11

Economical low temperature oven SNOL 200/200 is designed for thermal treatment of various materials and parts up to 200°C. This electric oven is designed for thermal treatment such as drying, heating, thermal testing, aging and similar purposes in an air-flow environment. Forced air convection allows a homogeneous temperature distribution during all process, which ensures optimal results. Good technical parameters ensure to high-quality results. This oven can be used in scientific laboratories, educational institutions, medicine and industry.

BASIC MODEL

Control panel is placed on the right side,
Ventilation motor on back side,
Forced horizontal air circulation,
304 stainless steel,
2 shelves,
Outside casing in metal sheet, powder painting grey,
Insulation rock wool (complete lack of asbestos),
Two door opening, inner door in stainless steel, silicon joint,
Microprocessor – temperature controller,
Low electric power usage for increased energy efficiency,
Short heating up / cooling down period.

OPTIONS

Additional standard shelves
Reinforced shelves
Metal tray
Reinforced bottom
Digital timer
Fan speed controller
(for ovens with forced air circulation)
Buzzer
Over-temperature protection
Data recorder
RS232/RS-485/USB interface
Calibration of temperature measurement system
Oven exterior made of stainless steel
Stand for supporting the oven
Additional 1 year guarantee

Technical data

Useful volume	Liter	200
Rated power not more than	kW	2
Rated supply voltage	V	230
Rated frequency	Hz	50
Number of phases	-	1
Continuous operating temperature	°C	T+10-200
Maximum temperature	°C	200
Working chamber surroundings	-	air (with hot air fan)
Airflow		horizontal
Shelves (number)/max.		2/5
Maximum heating- up time (without charge) up to 200°C	Min.	45
Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than	± °C	1
Temperature uniformity in working space at 200°C temperature in thermal steady state without charge not more than	±°C	10
Oven working chamber dimensions:
width	mm	710
depth	mm	610
height	mm	460
Outside dimensions:
width	mm	1040
depth	mm	780
height	mm	775
Mass	kg	78
