Umega moffeloven 4 liter 1100 graden

Art.Nr.

L3254-1100LSC01

Volume 4 liter
Temperatuurbereik tot 900 graden
Afmetingen intern (bxdxh) 120 x 295 x 100 mm
Vermogen 3,7 Kw, 230V
Deur opening zijwaards
Standaard voorzien van temperatuurbeveiliging T-max
Gewicht circa 55 kg
Zonder schoorsteen

Bekijk alle specificaties

Download de PDF

Specificaties

Specificaties
Merk	Umega
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

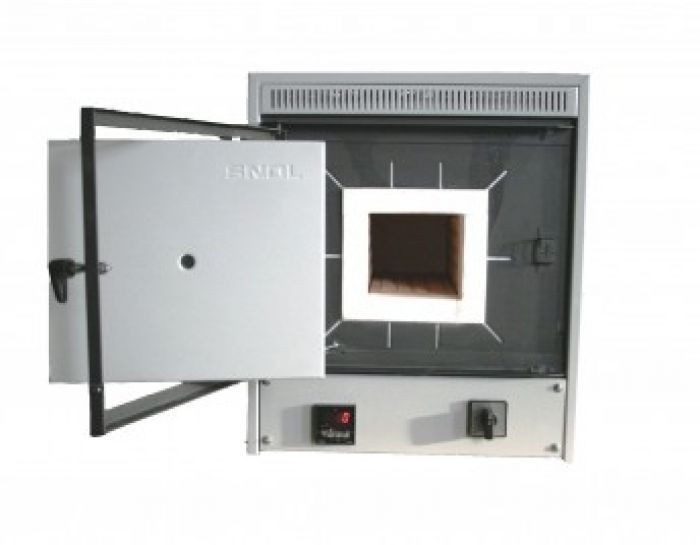

Umega moffeloven 4 liter 1100 graden

SNOL 4/1100 LSC01

High accuracy electric furnace with solid ceramic chamber SNOL 4/1100 is intended for hardening, loosening, normalising and other thermal processing up to 1100°C. To eliminate gasses or smokes that are released during thermal processing, exhaust system may be additionally installed in the products. The furnace is excellent fit for scientific laboratories, educational institutions, medicine and industry.

BASIC MODEL

Solid ceramic chamber,
Partially exposed heating elements in four sides around a chamber,
Outside casing in metal sheet, powder painting grey,
Door opens sided,
Door safety switch,
Control panel is placed in under part of the furnace,
Microprocessor – temperature controller,
Ceramic bottom plate,
Low electric power usage,
High temperature inertness,
High degree of accuracy.

OPTIONS

Process observation window (o 35 mm) up to 1100 °C
Fan-assisted chimney for forced air extraction
Additional ceramic hearth plates
Buzzer
Digital timer
Protection against overheating
Data recorder
RS232/RS-485/USB interface
Calibration of temperature measurement
System
Table for supporting the furnace

Specification

Technical data	Dimension	SNOL 4/1100 LSC01
Useful volume	Liter	4
Rated power not more than	kW	3,7
Rated supply voltage	V	230
Rated frequency	Hz	50
Number of phases	-	1
Continuous operating temperature	°C	T+10-1100
Maximum temperature	°C	1100
Working chamber material	-	Ceramic
Maximum heating- up time (without charge)	Min.	110
Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than	± °C	2
Temperature uniformity in working space at rated temperature in thermal steady state without charge not more than	±°C	10
Furnace working chamber dimensions:
width	mm	120
depth	mm	295
height	mm	110
Furnace external dimensions:
width	mm	440
depth	mm	615
height	mm	500
Mass	kg	41
