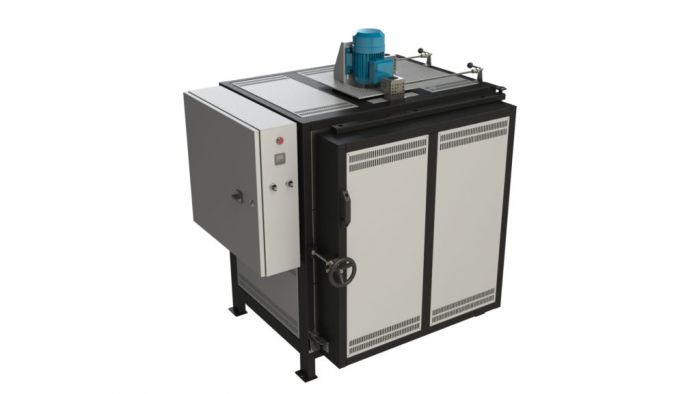

Umega Snol droogoven 250°C 2500 liter
Art.Nr.
L3252500/250

Umega Snol droogoven 250°C 2500 liter

Art.Nr.
L3252500/250

Umega droogoven 250°C 2500 liter
Volume 2500 liter
Temperatuurbereik tot 250°C
Controlepaneel & deuropening rechts of links mogelijk
Ventilatie motor op dak van de oven
Temperatuurregeling middels Thermokoppel
Handmatig instelbaar PID regelaar (Omron E5CC)
Oven voorzien van oververhitting beveiliging
Afmeting intern (bxbxh): 1000 x 1500 x 1700 mm
Afmeting extern (bxbxh): 1910 x 2210 x 2810 mm
Vermogen circa 24 kW / 400 V
Inclusief 2 inlegbladen
Andere afmetingen & maatwerk mogelijk

Bekijk alle specificaties

Sorry, dit product kunt u niet toevoegen aan uw winkelwagen.

Vul onderstaande gegevens in en wij maken zo snel mogelijk een concrete offerte voor u op.

Specificaties
Specificaties
Merk Umega
Volume 2.500 liter
Max. Temperatuur 250
Productbeschrijving

Chamber ovens up to 350°C

Our universal industrial electric furnaces / ovens with induced air circulation are designed by a group of professional engineers and made from high quality materials, such as heavy-duty metal parts and thermal insulation materials, which are manufactured in our factory. The air circulation ensures an even temperature distribution and achieves great uniformity. Fit with a selection of precise digital controllers and certified heating elements to ensure excellent temperature stability. The application variety ranges from electronic, plastic or metal to other branches of industry, with the possibilities to use this product line for curing, primary heating, and other thermal processes up to 350 °C. The combination of our knowledge and expertise leads to a high quality and long-lasting product with long-term stable efficiency, no matter the application.


BASIC MODEL

Equipped with non-programmable controller Omron E5CC

Control panel on the left/right side (depending on customer needs)

Adjustable air supply / extractionVentilation motor on the top, vertical air flow

Heating from 2 sides with tubular (U-shaped) heating elements

Insulation made from rock wool

Outside casing – metal sheet, powder painted grey (RAL 7035), frame – black

Door opening to left/right side (depending on customer needs)

Fitted with standard shelves, 2 pcs.

Low power consumption

Short heating/cooling time

High level of accuracy

Door safety switch

OTP (over temperature protection), Omron K8 relaySSR relay

1 year warranty


OPTIONS

Additional shelves

Reinforced shelves

Reinforced bottom

Ventilation motor on the rear, horizontal air flow

Automatic air vent control

Digital timer

Data recorder

Data communication/USB

Calibration and maintenance of temperature measurement system

Stainless steel oven exterior

Oven mounting platform
