Vacuubrand analoge I/O interface module VACUU·BUS®

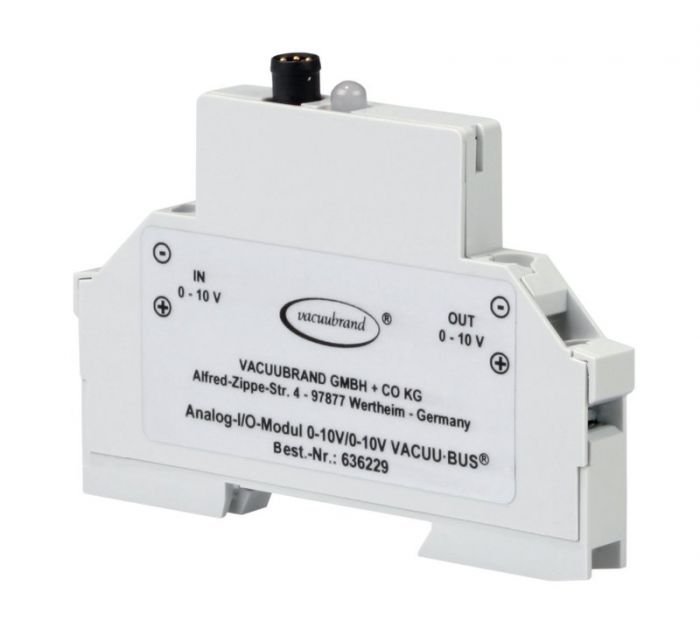

Vacuubrand Analog-I/O-Module 0-10V VACUU·BUS®

The Analog-I/O-Module is an analog interface for the VACUU·BUS^® system of vacuum measuring gauges and controllers. The input and output signal follows the industry standard of 0-10 V. In the default configuration of the module the actual vacuum value is indicated as a 0-10V output. Therefore the controller CVC 3000 and the measuring gauge DCP 3000 can be easily connected to a plotter and used for GMP documentation. Other module configurations allow input and output of vacuum level and motor speed as 0-10V signals.

Performance features

• analog output of the vacuum measurment as a 0-10 V signal
• analog setting of the target vacuum as a 0-10 V signal
• configurable for the input and output of set and/or actual values of the motor speed with VARIO^® pumps or VARIO^® pumping units
• resolution of the analog output signal is 2.5 mV
• color LED status indication

Technical data

-Technical data are subject to change without notice-
