Vacuubrand BVC Control G afzuigsysteem glazen fles

Specificaties
Merk	Vacuubrand
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

Vacuubrand BVC afzuigsystemen voor verwijderen van biologische vloeistoffen

Fluid aspriation systems: voor professioneel opzuigen en verwijderen van vloeistoffen in de biochemie, microbiologie en cellulaire cultuur technologie
Een bewezen systeem met alle benodigde accesories

Toepassingen

afzuigen van vloeistoffen uit microtiterplaten
afzuigen van vloeistoffen uit petrischalen
afzuigen van vloeistoffen uit cultuurflessen

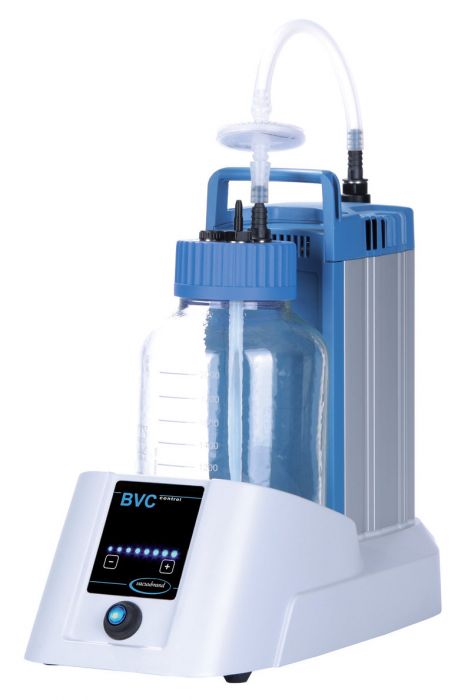

BVC control G

The BioChem-VacuuCenter BVC control serves for efficient and convenient aspiration of supernatants. The vacuum level - and thus the suction force - is exactly adjustable by the electronic touch panel and allows a sensitive and reproducible operation. The chemically resistant diaphragm vacuum pump is automatically turned on and off as needed, which reduces the low noise level even further. The BVC control is available in two complete equipment options with different collection flasks. The 2l borosilicate glass bottle with a protective coating has a very high chemical resistance. For larger amounts of liquids the 4l bottle of unbreakable polypropylene (PP) is used. The smooth surfaces allow an easy cleaning of the systems.

Performance features

powerful and long-lasting chemistry diaphragm pump for universal economical use
extremely compact, space saving and low noise and thus the ideal tool in the workplace
easy operation due to electronically adjustable suction power via touch panel, for strong or sensitive suction
autoclavable collection bottle designed to reduce aerosol and foam formation; with hydrophobic protection filter 0.2 µm, autoclavable quick-couplings available as accessory
ready to accept a second aspiration hand controller (VHC^pro) to support two users

Technical data

Technical data	Unit	BVC control G
Vacuum controller		Touchpanel
Number of heads / stages		1 / 1
Max. pumping speed at 50/60 Hz	m3/h	0.7 / 0.85
Max. pumping speed at 50/60 Hz	cfm	0.4 / 0.5
Ultimate vacuum (abs.)	mbar/torr	150 / 112
Control range		150 - 850 mbar (adjustable)
Collection bottle		2l Glass
Ambient temperature range (operation)	°C	10 - 40
Ambient temperature range (storage)	°C	-10 - 60
Max. back pressure (abs.)	bar	1.1
Inlet connection		Suction controller
Outlet connection		Hose nozzle DN 8 mm / silencer
Rated motor power	kW	0.04
Rated motor speed at 50/60 Hz	min-1	1500/1800
Degree of protection		IP 40
Dimensions (L x W x H)	mm	408 x 194 x 430
Weight	kg	7.7
Noise level at 50 Hz, typ.	dBA	45
Items supplied		Fluid aspiration system complete with powerful chemistry diaphragm pump, collection bottle, adjustable suction power control via touch panel, aspiration hand set VHC^pro and protection filter, ready for use with manual.
Accessories		Protection filter 0.2 µm hydrophob (638266) Suction Controller VacuuHandControl VHC^pro (688061) Extension kit second suction controller connection (699943) Quick-fit coupling suction controller to bottle (635807) Quick-fit coupling bottle to pump (635808)

Fluid aspiration systems

The compact BioChem-VacuuCenter offers the perfect solution for safe, sensitive and efficient aspiration of supernatants in all application areas. The BVC basic is intended for connection to an external vacuum source. The BVC control and the BVC professional are equipped with a high performance, chemically resistant diaphragm pump. The vacuum level and thus the suction force at the hand control can be sensitively adjusted via a touch panel. In addition, the BVC professional features a non-contact liquid level sensor and self-closing quick couplings (4l PP bottle version). All systems are available either with a vacuum-resistant, autoclavable 4l PP bottle or with a 2l borosilicate glass bottle, e.g., for working with aggressive disinfectants such as chlorine bleach. All versions are ready for connection of a second hand control.

Flexibility and comfort

4l PP or 2l glass bottle - for a perfect fit with process protocols (glass version, e.g., for chlorine bleach)
compact size with control handle - for flexible, space-saving setup with perfect ergonomics
very low noise levels in operation - to work comfortably in daily routine
sensitive suction power adjustment via touch panel - for sample protection and reproducible results
vacuum pump that responds automatically to demand - no foot pedal switch needed

Economic efficiency

powerful chemical-resistant diaphragm vacuum pump with a very long service life even when working with aggressive disinfectants - minimal costs for maintenance and spare parts
ready to accept a second hand controller - double use for lower cost per user
high-quality components for trouble-free operation in continuous professional use

Safety

0.2 micron protection filter - high protection against contamination of the environment
hand controller with flow-through suction tube - no contamination of handle with aspirated media

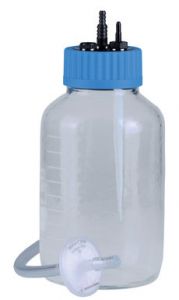

collection flask made of PP or coated borosilicate glass - completely autoclavable, with 0.2 micron protection filter
2l borosilicate glass flask for high chemical resistance, with splinter-proof coating for safety and leakage protection
BVC professional includes liquid-level sensor to prevent aspiration of liquids into pump. Self-closing couplings (4l PP bottle version) for safe removal of bottle for change and transport
