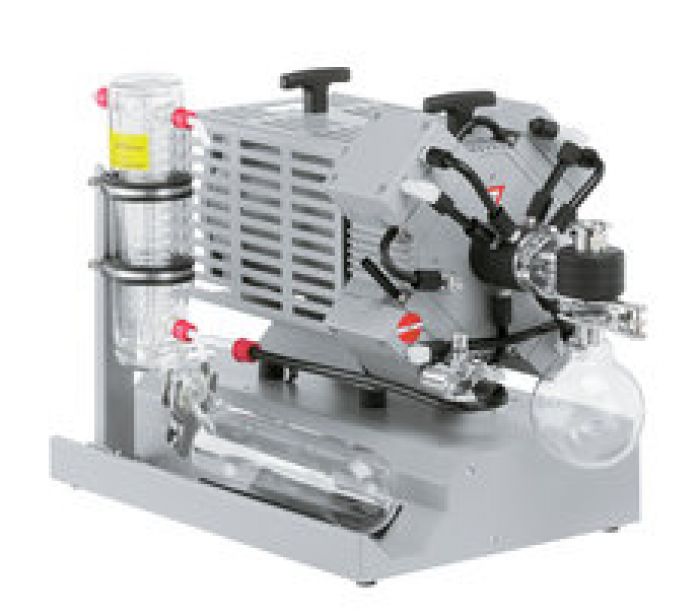

Vacuubrand MD 4C EX VARIO+AK+EK opstelling 1,5mbar 3,7m3/h
Art.Nr.
L0620696937
Vacuubrand MD 4C EX VARIO+AK+EK opstelling 1,5mbar 3,7m3/h
Art.Nr.
L0620696937
Chemisch bestendig ATEX opstelling met afscheider en koeler
ATEX conformiteit: Pomphuis: II 2G IIC T3 X Omgeving met inertgas spoelen : II 2G IIB T4 X Omgeving zonder inertgas spoelen: II 3G IIB T4 X Motor: II 2G EEx d IIB T4
Eindvacuüm: 1,5 mbar
Pompsnelheid: 3,7 m3/h
Vermogen: 250 Watt
Afmetingen (lxbxh): 600 x 365 x 420 mm
Gewicht: 37,4 kg
Aansluiting inlaat: slangaansluiting Ø 10mm
Aansluiting uitlaat: slangaansluiting Ø 10mm
Levering met 2 meter kabel zonder stekker
Geschikt voor aansturing via Vacuu-Select met Vacuubrand Box 100 en ATEX vacuümsensor (niet inbegrepen)
ATEX conformiteit: Pomphuis: II 2G IIC T3 X Omgeving met inertgas spoelen : II 2G IIB T4 X Omgeving zonder inertgas spoelen: II 3G IIB T4 X Motor: II 2G EEx d IIB T4
Eindvacuüm: 1,5 mbar
Pompsnelheid: 3,7 m3/h
Vermogen: 250 Watt
Afmetingen (lxbxh): 600 x 365 x 420 mm
Gewicht: 37,4 kg
Aansluiting inlaat: slangaansluiting Ø 10mm
Aansluiting uitlaat: slangaansluiting Ø 10mm
Levering met 2 meter kabel zonder stekker
Geschikt voor aansturing via Vacuu-Select met Vacuubrand Box 100 en ATEX vacuümsensor (niet inbegrepen)
Sorry, dit product kunt u niet toevoegen aan uw winkelwagen.
| Merk | Vacuubrand |
|---|---|
| Zuigvermogen in m3/h | 3,70 |
| Eindvacuüm mbar | 1,50 |
| Uitvoering pomp | extern Atex |
| Vacuümregeling | digitaal |
| Afscheider zuigzijde | Ja |
| Condenser uitlaat | Ja |
Vacuubrand MD4C EX VARIO +AK+EK Atex pompopstelling 2,3 mbar
With the new ATEX VARIO® chemistry diaphragm pumps and vacuum systems, the vacuum can be precisely controlled by the motor speed. The VARIO® pump is driven by an additional control signal line. The optional vacuum controller CVC 3000 with system accessories (I/O-Module, supply / isolation amplifier) and ATEX vacuum sensor enable fully automatic evaporations without the need for parameter settings or user programming. With the adaptive control it finds the boiling pressure independently and adjusts the vacuum continuously and optimally according to the vapor pressure. The vacuum controller and system accessories are installed in a non-hazardous area.
Performance features
- full advantage of ATEX chemistry diaphragm pumps
- short process times due to hysteresis-free VARIO® vacuum control
- VARIO®-pump operates on demand only as fast as necessary – minimal power consumption, extended maintenance intervals, silent operation
- vacuum controller CVC 3000 (optional) for precise vacuum control and fully automatic processes
- complete system accessories I/OModule, supply / isolation amplifier and ATEX vacuum sensor
Technical data
| Technical data | Unit | MD 4C EX VARIO +AK+EK |
|---|---|---|
| Vacuum controller | without controller | |
| Number of heads / stages | 4 / 3 | |
| Max. pumping speed | m3/h | 3.7 |
| Max. pumping speed | cfm | 2.2 |
| Ultimate vacuum (abs.) | mbar/torr | 3 / 2.3 |
| Ultim. vac. (abs.) with gas ballast | mbar/torr | 10 / 7.5 |
| Integral leakage rate | mbar l/s | 0.1 |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. media temperature | °C | 40 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Small flange KF DN 25 | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Coolant connection | 2 x hose nozzle DN 6-8 mm | |
| Rated motor power | kW | 0.25 |
| Max. operating current | A | 3.2 |
| Motor speed range | min-1 | 30 - 1500 |
| Degree of protection | IP 54 | |
| Dimensions (L x W x H), approx. | mm | 600 x 365 x 420 |
| Weight, approx. | kg | 34.7 |
| Noise level at 50 Hz, typ. | dBA | 53 |
| ATEX conformity | Pumping chamber (pumped gases): II 2G IIC T3 X Environment with inert purge gas: II 2G IIB T4 X Environment without inert purge gas: II 3G IIB T4 X Motor: II 2G Ex d IIB T4 Gb |
|
| Items supplied | Pumping unit completely mounted, ready for use, with manual, 2 m cable without plug. The user must provide an external protection against glass damage and breakage. | |
| Accessories | PTFE tubing KF DN 25 (1000 mm: 686033) Vacuum controller CVC 3000 Analog I/O module VACUU·BUS 4-20mA / 0-10V (635425) Signal conditioner 0-10V/4-20mA (635426) Power/input isolating amplifier 4-20mA (635427) Vacuum sensor ATEX 0.1 % FSO 4-20mA (635423) Vacuum sensor ATEX 0.5 % FSO 4-20mA (635424) |
