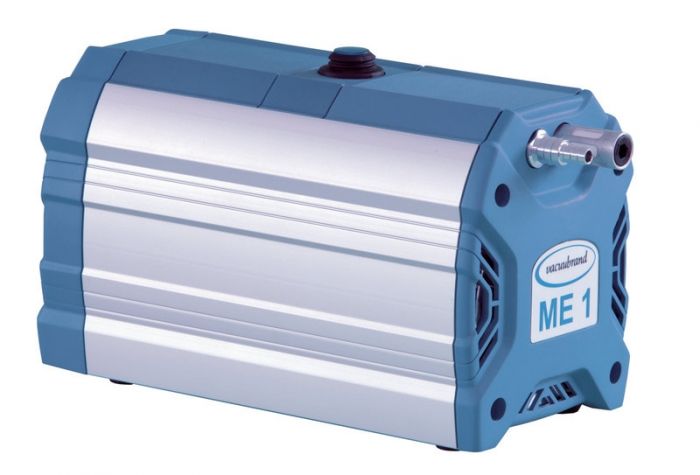

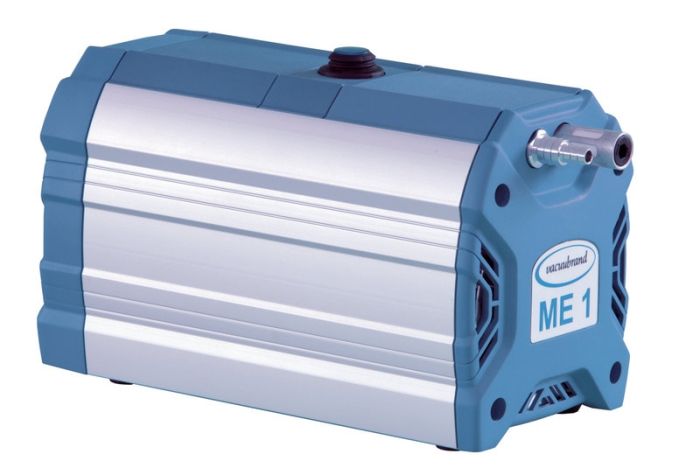

Vacuubrand ME1 membraanpomp 100 mbar 0,7 m3/h
Art.Nr.
L0620721000

Vacuubrand ME1 membraanpomp 100 mbar 0,7 m3/h

Art.Nr.
L0620721000

Niet chemisch bestendig
Eindvacuüm 100 mbar
Pompsnelheid: 0,7 m3/h
Aansluiting inlaat: slangaansluiting Ø 6 -10 mm
Aansluiting uitlaat: geluiddemper
Afmeting (lxbxh): 247 x 121 x 145 mm
Gewicht: 5 kg

Bekijk alle specificaties
Opvolger van...
Specificaties
Specificaties
Merk Vacuubrand
Zuigvermogen in m3/h 0
Eindvacuüm mbar 100
Uitvoering pomp niet chemisch bestendig
Vacuümregeling nee
Afscheider zuigzijde Nee
Condenser uitlaat Nee
Plus- en minpunten
  • Ideaal ter vervanging van een waterstraalpomp
  • Makkelijk filtreren van waterige oplossingen
  • Fluisterstil
  • Deze vacuümpomp is niet chemisch bestendig
Productbeschrijving

Vacuubrand ME 1 membraanpomp 100 mbar 0,7 m3/h

Niet chemisch bestendige membraanpomp.

Enkeltrapspomp, 1 cylinder met een pomphuis van aluminium en kleppen en membranen van duurzaam en soepel FPM, die de pomp zeer geschikt maken voor het creëren van olie-vrij vacuüm en voor het verpompen van gassen.

Zeer lange levensduur van kleppen en membranen, gecombineerd met een onderhoudsvrij aandrijfsysteem, waardoor de pomp geschikt is voor continue gebruik.

Meer informatie van Vacuubrand website

Vacuum filtration is one of the most common applications used for sample preparation in chemistry, microbiology, waste water control and other analytical processes. The new ME 1 diaphragm pump offers a compact, high performance and easy-to-use solution which is perfect for single port filtrations. This new development, based on the highly successful technology of the oil-free diaphragm pump MD 1, provides a well-proven and extraordinarily long diaphragm life time. The functional, space saving and innovative design with visible top mounted power switch ensures convenient and quick operation for day to day lab work. The PTFE diaphragm and valves are rugged and provide high chemical resistance. An optional manual regulator valve with dial gauge enables variable fine adjustment of the pumping speed and ultimate vacuum.

Performance features

  • convenient, quick and simple to use due to the new top mounted power switch
  • whisper quiet and very low vibration
  • requires minimal benchtop space
  • maintenance-free drive system and proven long diaphragm life
  • wetted materials: PTFE, aluminum

Technical data

Technical dataUnitME 1
Number of heads / stages   1 / 1
Max. pumping speed at 50/60 Hz m3/h 0.7 / 0.85
Max. pumping speed at 50/60 Hz cfm 0.4 / 0.5
Ultimate vacuum (abs.) mbar/torr 100 / 75
Ambient temperature range (operation) °C 10 - 40
Ambient temperature range (storage) °C -10 - 60
Max. back pressure (abs.) bar 1.1
Inlet connection   Hose nozzle DN 6-10 mm
Outlet connection   Silencer / G1/8"
Rated motor power kW 0.04
Rated motor speed at 50/60 Hz min-1 1500/1800
Degree of protection   IP 40
Dimensions (L x W x H) mm 247 x 121 x 145
Weight kg 5.0
Noise level at 50 Hz, typ. dBA 45
ATEX conformity (only 230V)   II 3G IIC T3 X Internal Atm. only
Items supplied   Pump completely mounted, ready for use, with manual.
Accessories   Rubber vacuum tubing DN 6 mm (686000)
Rubber vacuum tubing DN 8 mm (686001)
Vacuum regulator valve unit for ME 1 (696842)
