Eindvacuüm: 70 mbar
Pompsnelheid: 16,3 m3/h
Vermogen: 440 Watt
Afmetingen (lxbxh): 531 x 260 x 359 mm
Gewicht: 28 kg
Aansluiting inlaat: kleinflens aansluiting DN 25
Aansluiting uitlaat: slangaansluiting Ø 10mm
Merk | Vacuubrand |
---|---|
Zuigvermogen in m3/h | 16,30 |
Eindvacuüm mbar | 70 |
Uitvoering pomp | chemisch bestendig |
Vacuümregeling | nee |
Afscheider zuigzijde | Nee |
Condenser uitlaat | Nee |

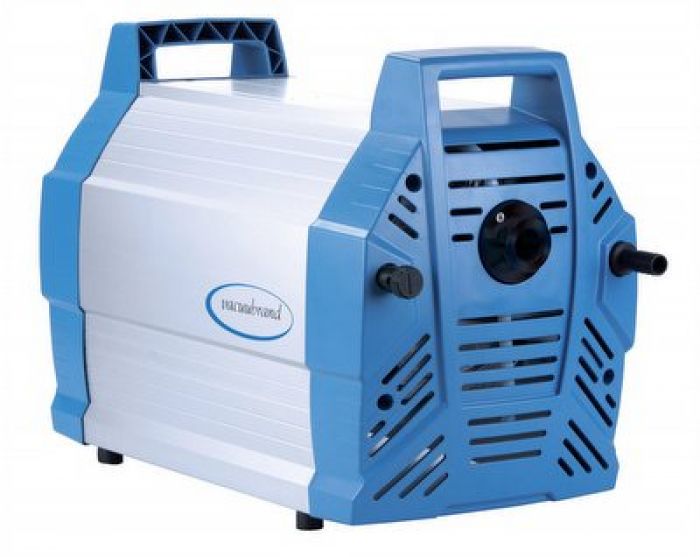

Vacuubrand ME 16C NT chemie membraanpomp 70 mbar 16,3 m3/h
Chemisch bestendige membraanpomp
- Enkeltrapspomp, 8 cylinders met uitmuntende bestendigheid tegen agressieve gassen.
- Alle materialen die in contact kunnen komen met de gassen zijn vervaardigd van hoogwaardige fluorpolymeren.
- Zeer lange levensduur van kleppen en membranen, gecombineerd met een onderhoudsvrij aandrijfsysteem maken de pomp geschikt voor continue gebruik.
- Compleet met gasbalastventiel voor optimale prestaties ook bij het werken met gemakkelijk condenseerbare dampen.
Technische gegevens
- Eindvacuüm: 70 mbar
- Pompsnelheid: 16,3 m3/h
- Vermogen: 440 Watt
- Afmetingen (lxbxh): 531 x 260 x 359 mm
- Gewicht: 28 kg
- Aansluiting inlaat: kleinflens aansluiting DN 25
- Aansluiting uitlaat: slangaansluiting Ø 10mm
Meer informatie van Vacuubrand website
Chemistry diaphragm pumps of the NT design are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The one-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms increase reliability and extend operating life. The chemistry vacuum system ME 8C NT +2AK with inlet separator to protect the pump against particles and liquid droplets and outlet separator to collect condensate is a well-proven choice for demanding applications. The eight-cylinder pump ME 16C NT provides a particularly high performance together with a compact design. Accessories such as inlet separator (AK) for protection of the pump and exhaust vapor condenser (EK) for solvent recovery can be mounted on this pump later, if the need arises. Eight-cylinder NT pumps feature quiet operation, smooth and easy to clean surfaces.
Performance features
- outstanding chemical resistance and superior vapor tolerance
- very high pumping speed even at low vacuum levels
- compact design
- whisper quiet and very low vibration
- long diaphragm life, maintenance-free drive system
Technical data
Technical data | Unit | ME 16C NT |
---|---|---|
Number of heads / stages | 8 / 1 | |
Max. pumping speed at 50/60 Hz | m3/h | 16.3 / 18.4 |
Max. pumping speed at 50/60 Hz | cfm | 9.6 / 10.8 |
Ultimate vacuum (abs.) | mbar/torr | 70 / 53 |
Ultim. vac. (abs.) with gas ballast | mbar/torr | 100 / 75 |
Ambient temperature range (operation) | °C | 10 - 40 |
Ambient temperature range (storage) | °C | -10 - 60 |
Max. back pressure (abs.) | bar | 1.1 |
Inlet connection | Small flange KF DN 25 | |
Outlet connection | Hose nozzle DN 15 mm | |
Rated motor power | kW | 0.44 |
Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
Degree of protection | IP 40 | |
Dimensions (L x W x H) | mm | 533 x 260 x 359 |
Weight | kg | 28.1 |
Noise level at 50 Hz, typ. | dBA | 52 |
ATEX conformity (only 230V) | II 3G IIC T3 X Internal Atm. only | |
Items supplied | Pump completely mounted, ready for use, with manual. | |
Accessories | PTFE tubing KF DN 25 (1000 mm: 686033) Inlet separator KF DN 25 (699979) Emission condenser kit for eight cyl. NT pump models (699948) Centering and sealing ring KF DN 25 C Al/FEP (635722) |
