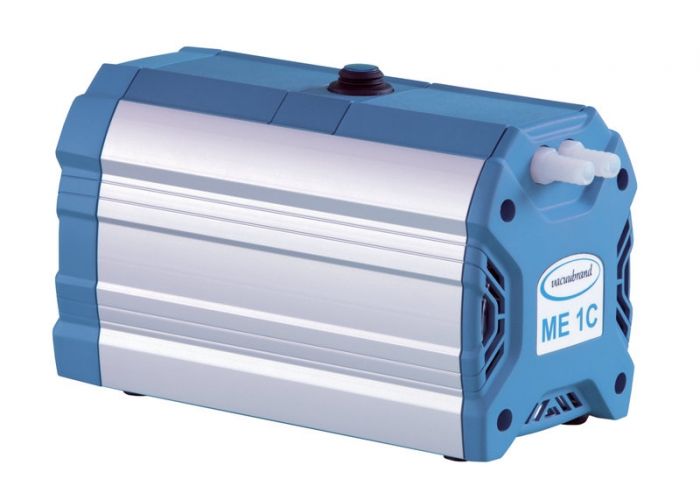

Vacuubrand ME1C chemie membraanpomp 100 mbar 0,7 m3/h
Art.Nr.
L0620721100

Vacuubrand ME1C chemie membraanpomp 100 mbar 0,7 m3/h

Art.Nr.
L0620721100

Chemisch bestendig
Eindvacuüm 100 mbar
Pompsnelheid: 0,7 m3/h
Vermogen: 40 Watt
Aansluiting inlaat: slangaansluiting Ø 10 mm
Aansluiting uitlaat: slangaansluiting Ø 10 mm
Afmeting (lxbxh): 247 x 121 x 145 mm
Gewicht: 5 kg

Bekijk alle specificaties
Opvolger van...
Specificaties
Specificaties
Merk Vacuubrand
Zuigvermogen in m3/h 0,70
Eindvacuüm mbar 100
Uitvoering pomp chemisch bestendig
Vacuümregeling nee
Afscheider zuigzijde Nee
Condenser uitlaat Nee
Plus- en minpunten
  • Chemisch bestendig voor filtreren van oplosmiddelen
  • Compact tafelmodel
  • Duurzame kleppen en membranen voor lange levensduur
  • Eindvacuüm 100 mbar
Productbeschrijving

Vacuubrand ME 1C chemie membraanpomp 100 mbar 0,7 m3/h

Chemisch bestendige membraanpomp

  • Enkeltrapspomp, 1 cylinder met uitmuntende bestendigheid tegen agressieve gassen.
  • Alle materialen die in contact kunnen komen met de gassen zijn vervaardigd van hoogwaardige fluorpolymeren.
  • Zeer lange levensduur van kleppen en membranen, gecombineerd met een onderhoudsvrij aandrijfsysteem maken de pomp geschikt voor continue gebruik. Ideale pomp voor vacuümfiltraties

Meer informatie van Vacuubrand website

Vacuum filtration is one of the most common applications used for sample preparation in chemistry, microbiology, waste water control and other analytical processes. The new ME 1C diaphragm pump offers a compact, high performance and easy-to-use solution which is perfect for single filtrations. This new development, based on the highly successful technology of the oil-free diaphragm pump MD 1C, provides a well-proven and extraordinarily long diaphragm life time. The functional, space saving and innovative design with easily accessible, top-mounted power switch ensures convenient and quick operation for day-to-day lab work. Robust PTFE diaphragms and valves provide optimal chemical resistance. A manual vacuum regulator valve with dial gauge for adjustment of pumping speed and ultimate vacuum is available as accessory.

Performance features

  • convenient, quick and simple to use due to the new top-mounted power switch
  • whisper quiet and very low vibration
  • requires minimal benchtop space
  • maintenance-free drive system and proven long diaphragm life
  • high chemical resistance

Technical data

Number of heads / stages   1 / 1
Max. pumping speed at 50/60 Hz m3/h 0.7 / 0.85
Max. pumping speed at 50/60 Hz cfm 0.4 / 0.5
Ultimate vacuum (abs.) mbar/torr 100 / 75
Ambient temperature range (operation) °C 10 - 40
Ambient temperature range (storage) °C -10 - 60
Max. back pressure (abs.) bar 1.1
Inlet connection   Hose nozzle DN 8-10 mm
Outlet connection   Hose nozzle DN 8-10 mm
Rated motor power kW 0.04
Rated motor speed at 50/60 Hz min-1 1500/1800
Degree of protection   IP 40
Dimensions (L x W x H) mm 247 x 121 x 145
Weight kg 5.0
Noise level at 50 Hz, typ. dBA 45
NRTL certification   Canada and the USA
ATEX conformity (only 230V)   II 3G IIC T3 X Internal Atm. only
Items supplied   Pump completely mounted, ready for use, with manual.
Accessories   Rubber vacuum tubing DN 8 mm (686001)
Chemistry vacuum regulator valve unit for ME/MZ 1C (696843)
Silencer DN 8 - 10 mm (636588)

Vacuubrand PRESS RELEASE 11/2012

Compact vacuum pumps for filtration and solid phase extraction


The diaphragm pumps ME 1 and ME 1C complete the range of compact vacuum pumps for applications like filtration and sample preparation in chemistry, microbiology, waste water control and other analytical processes. The ultimate vacuum of 100 mbar obtains 90% of atmospheric pressure that is doing the work of forcing the media through the filter. For aqueous filtration, the ME 1 is the optimal choice; however, for more aggressive solvents, the ME 1C with its superior chemical resistance properties is the right solution. The new top mounted power switch and the space saving design offers an easy-to-use functionality even with gloves and requires minimal bench top space. An optional manual control valve with dial gauge enables variable fine adjustment of the pumping speed (max. 0.7 m³/h).
The ME 1 and ME 1C allow an almost maintenance-free use. New designed from the established technology of the three-stage model line MD 1 and MD 1C they stand out due to a proven long diaphragm life.
