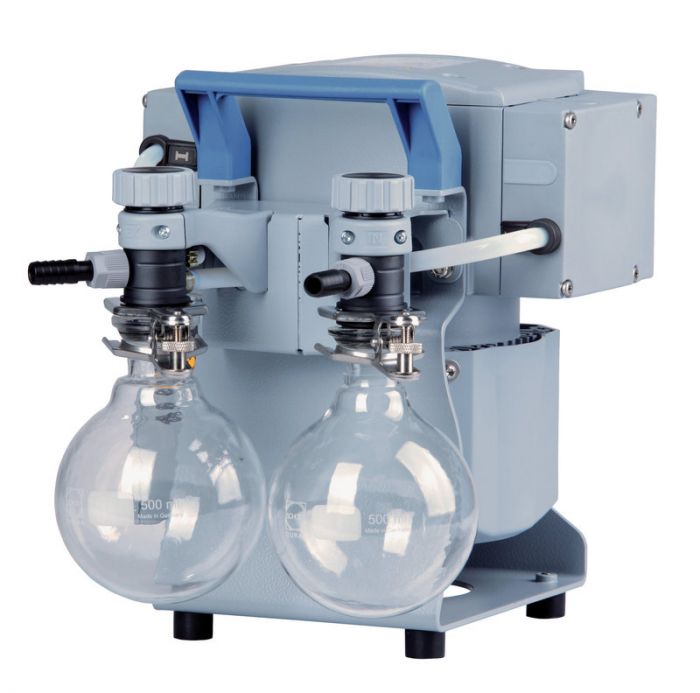

Vacuubrand ME4CNT+2 AK chemie pompopstelling 70mbar 3,9m3/h
Art.Nr.
L0622614080

Vacuubrand ME4CNT+2 AK chemie pompopstelling 70mbar 3,9m3/h

Art.Nr.
L0622614080
Chemisch bestendig met kolven aan inlaat en uitlaat
Eindvacuüm 70 mbar
Pompsnelheid: 3,9 m3/h
Aansluiting inlaat: slangaansluiting Ø 10 mm
Aansluiting uitlaat: slangaansluiting Ø 10mm
Afmeting (lxbxh): 316 x 242 x 291 mm
Gewicht: 13,6 kg
Levering zonder netstekker (637652)
Bekijk alle specificaties
Specificaties
Specificaties
Merk Vacuubrand
Zuigvermogen in m3/h 3,90
Eindvacuüm mbar 70
Uitvoering pomp chemisch bestendig
Vacuümregeling nee
Afscheider zuigzijde Ja
Condenser uitlaat Nee
Productbeschrijving

Vacuubrand ME 4C NT+2 AK chemie membraanpomp 70 mbar 3,9 m3/h

Chemisch bestendige membraanpomp

  • Enkeltrapspomp, 2 cylinders met uitmuntende bestendigheid tegen agressieve gassen.
  • Alle materialen die in contact kunnen komen met de gassen zijn vervaardigd van hoogwaardige fluorpolymeren.
  • Zeer lange levensduur van kleppen en membranen, gecombineerd met een onderhoudsvrij aandrijfsysteem maken de pomp geschikt voor continue gebruik.

Technische gegevens

  • Eindvacuüm: 70 mbar
  • Pompsnelheid: 3,9 m3/h
  • Vermogen: 180 Watt
  • Afmetingen (lxbxh): 255 x 242 x 198 mm
  • Gewicht: 11,1 kg
  • Aansluiting inlaat: slangaansluiting Ø 10mm
  • Aansluiting uitlaat: slangaansluiting Ø 10mm

Meer informatie van Vacuubrand website

This chemistry vacuum system provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. It is therefore ideal for evacuating and pumping large amounts of gases and vapors. It has a wide range of applications in chemical, biological and pharmaceutical laboratories if condensation of solvent vapors at the outlet is not necessary. Typical applications are vacuum ovens, single and multiple filtrations, as well as concentration of solvents with low boiling points. The separator at the inlet (AK) is made of glass with protective coating and retains particles and liquid droplets. The separator at the outlet collects condensate, avoids condensate backflow towards the pump and makes the pump whisper-quiet.

Performance features

  • outstanding chemical resistance and superior vapor tolerance
  • high performance even at low vacuum levels
  • compact design
  • whisper quiet and very low vibration
  • separators at inlet and outlet to collect condensates

Technical data

Technical dataUnitME 4C NT +2AK
Number of heads / stages   2 / 1
Max. pumping speed at 50/60 Hz m3/h 3.9 / 4.3
Max. pumping speed at 50/60 Hz cfm 2.3 / 2.5
Ultimate vacuum (abs.) mbar/torr 70 / 52
Ambient temperature range (operation) °C 10 - 40
Ambient temperature range (storage) °C -10 - 60
Max. back pressure (abs.) bar 1.1
Inlet connection   Hose nozzle DN 8-10 mm
Outlet connection   Hose nozzle DN 8-10 mm
Rated motor power kW 0.18
Rated motor speed at 50/60 Hz min-1 1500/1800
Degree of protection   IP 40
Dimensions (L x W x H) mm 316 x 242 x 291
Weight kg 13.6
Noise level at 50 Hz, typ. dBA 45
NRTL certification   Canada and the USA
ATEX conformity (only 230V)   II 3G IIC T3 X Internal Atm. only
Items supplied   Pumping unit completely mounted, ready for use, with manual, with dual voltage motor.
Accessories   Power cable CEE (612058)
Power cable CH (676021)
Power cable UK (676020)
Power cable US (612065)
Power cable CN (635997)
Upgrade kit manometer with valve (699906)
Rubber vacuum tubing DN 8 mm (686001)
