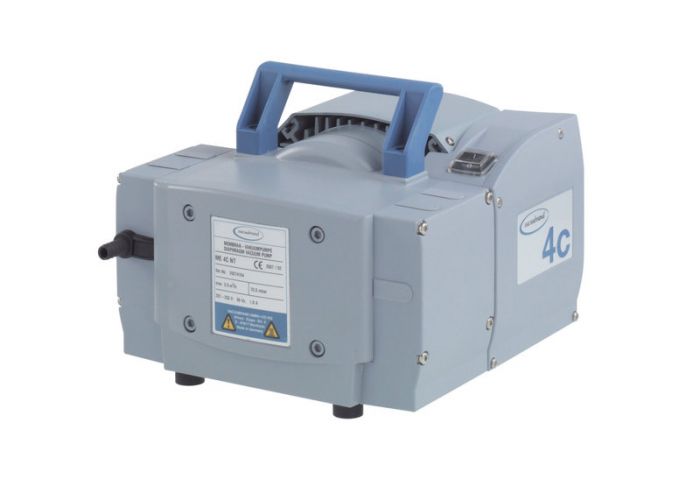

Vacuubrand ME4CNT chemie membraanpomp 70 mbar 3,9 m3/h
Art.Nr.
L0620731200

Vacuubrand ME4CNT chemie membraanpomp 70 mbar 3,9 m3/h

Art.Nr.
L0620731200
Chemisch bestendig
Eindvacuüm 70 mbar
Pompsnelheid: 3,9 m3/h
Aansluiting inlaat: slangaansluiting Ø 10 mm
Aansluiting uitlaat: slangaansluiting Ø 10mm
Afmeting (lxbxh): 254 x 243 x 198 mm
Gewicht: 11,1 kg
Bekijk alle specificaties
Specificaties
Specificaties
Merk Vacuubrand
Zuigvermogen in m3/h 3,90
Eindvacuüm mbar 70
Uitvoering pomp chemisch bestendig
Vacuümregeling nee
Afscheider zuigzijde Nee
Condenser uitlaat Nee
Productbeschrijving

Vacuubrand ME 4C NT chemisch bestendige membraanpomp

  • Enkeltrapspomp, 2 cylinders met uitmuntende bestendigheid tegen agressieve gassen.
  • Alle materialen die in contact kunnen komen met de gassen zijn vervaardigd van hoogwaardige fluorpolymeren.
  • Zeer lange levensduur van kleppen en membranen, gecombineerd met een onderhoudsvrij aandrijfsysteem maken de pomp geschikt voor continue gebruik.

Technische gegevens

  • Eindvacuüm: 70 mbar
  • Pompsnelheid: 3,9 m3/h
  • Vermogen: 180 Watt
  • Afmetingen (lxbxh): 255 x 242 x 198 mm
  • Gewicht: 11,1 kg
  • Aansluiting inlaat: slangaansluiting Ø 10mm
  • Aansluiting uitlaat: slangaansluiting Ø 10mm

Meer informatie van Vacuubrand website

Chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The one-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All major parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms increase reliability and extend operating life. The new NT-series features further improved performance data, higher tolerance for condensates and simplified maintenance. The ME 4C NT is also available as chemistry vacuum system ME 4C NT +2AK with inlet separator to protect the pump against particles and liquid droplets, plus outlet separator to collect condensate.

Performance features

  • outstanding chemical resistance
  • high performance even at low vacuum levels
  • whisper quiet
  • low vibration
  • long diaphragm life, maintenance-free drive system

 Technical data

Technical dataUnitME 4C NT
Number of heads / stages   2 / 1
Max. pumping speed at 50/60 Hz m3/h 3.9 / 4.3
Max. pumping speed at 50/60 Hz cfm 2.3 / 2.5
Ultimate vacuum (abs.) mbar/torr 70 / 52
Ambient temperature range (operation) °C 10 - 40
Ambient temperature range (storage) °C -10 - 60
Max. back pressure (abs.) bar 1.1
Inlet connection   Hose nozzle DN 8-10 mm
Outlet connection   Hose nozzle DN 8-10 mm
Rated motor power kW 0.18
Rated motor speed at 50/60 Hz min-1 1500/1800
Degree of protection   IP 40
Dimensions (L x W x H) mm 254 x 243 x 198
Weight kg 11.1
Noise level at 50 Hz, typ. dBA 45
NRTL certification   Canada and the USA
ATEX conformity (only 230V)   II 3G IIC T3 X Internal Atm. only
Items supplied   Pump completely mounted, ready for use, with manual.
Accessories   Rubber vacuum tubing DN 8 mm (686001)
