Niet chemisch bestendig
Compleet met druk- en vacuümmeter
Maximaal eindvacuüm 100 mbar
Maximale druk 4 bar
Pompsnelheid: 3,8 m3/h
Aansluiting inlaat: slangaansluiting Ø 10 mm
Aansluiting uitlaat: slangaansluiting Ø 10 mm
Afmeting (lxbxh): 243 x 239 x 290 mm
Gewicht: 11,5 kg
Merk | Vacuubrand |
---|---|
Zuigvermogen in m3/h | 3,80 |
Eindvacuüm mbar | 100 |
Uitvoering pomp | niet chemisch bestendig |
Vacuümregeling | analoog |
Afscheider zuigzijde | Nee |
Condenser uitlaat | Nee |

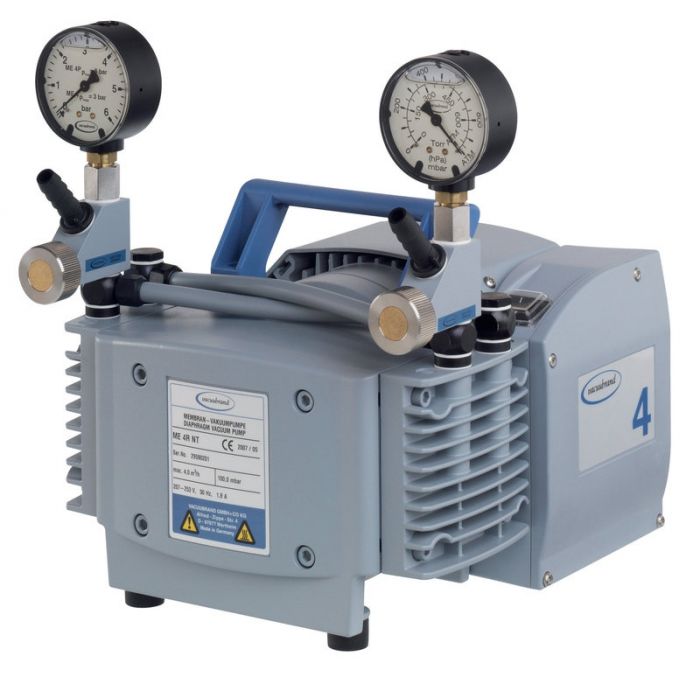

Vacuubrand ME4RNT pomp + druk-& vacuümmeter 100mbar 3,8 m3/h
- Deze een-fase membraanpomp werkt tegelijkertijd als een vacuümgenerator en als compressor.
- Alle onderdelen die in contact kunnen komen met dampen zijn gemaakt van aluminium en geselecteerde kunststoffen (PTFE-membranen en kleppen).
- Daarmee ontstaat een brede scala aan toepassingen voor niet-corrosieve gassen.
- De inlaat- en uitlaat aansluitingen van de ME 4R NT zijn uitgerust met regelbare afsluiters voor vacuüm en overdruk en hiermee kan het druk- en vacuümniveau worden aangepast.
- De nieuwe NT-serie heeft verder verbeterde performance data.
Prestatiekenmerken
- contaminatie-vrij pompen, vacuüm compressie
- hoog debiet zelfs in de buurt van maximale onderdruk
- aanpassing van uitlaatdruk en vacuümniveau met regelbare kleppen
- zeer laag trillingsniveau
- uitzonderlijk lange levensduur en diafragma onderhoudsvrij aandrijfsysteem voor lage gebruikskosten
Meer informatie van Vacuubrand website
This one-stage diaphragm pump works as a vacuum generator and as well as a compressor. All parts in contact with pumped media are made of aluminum and selected plastics (PTFE diaphragms and valves). They enable a wide range of applications for non-corrosive gases. The inlet and outlet connections of the ME 4R NT are equipped with regulator valves for vacuum and overpressure, respectively. Both the compression pressure and vacuum level can be adjusted. Inlet vacuum level and outlet pressure are indicated by manometers.
Performance features
- contamination-free pumping, evacuation and compression
- high flow rate even near ultimate vacuum
- adjustment of outlet pressure and vacuum level with regulatorvalves
- very low vibration
- exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs
Technical data
Technical data | Unit | ME 4R NT |
---|---|---|
Vacuum controller | Manometer | |
Number of heads / stages | 2 / 1 | |
Max. pumping speed at 50/60 Hz | m3/h | 3.8 / 4.2 |
Max. pumping speed at 50/60 Hz | cfm | 2.2 / 2.5 |
Ultimate vacuum (abs.) | mbar/torr | 100 / 75 |
Ambient temperature range (operation) | °C | 10 - 40 |
Ambient temperature range (storage) | °C | -10 - 60 |
Max. back pressure (abs.) | bar | 4 |
Inlet connection | Hose nozzle DN 8-10 mm | |
Outlet connection | Hose nozzle DN 8-10 mm | |
Rated motor power | kW | 0.18 |
Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
Degree of protection | IP 40 | |
Dimensions (L x W x H) | mm | 243 x 239 x 290 |
Weight | kg | 11.5 |
Noise level at 50 Hz, typ. | dBA | 45 |
NRTL certification | Canada and the USA | |
Items supplied | Pump completely mounted, ready for use, with manual. | |
Accessories | Rubber vacuum tubing DN 8 mm (686001) |
