Chemisch bestendig
Met afscheider en Peltier emissiekoeler
Eindvacuüm: 7 mbar
Pompsnelheid 2m3/h
Vermogen: 180 Watt
Afmetingen (lxbxh): 326 x 242 x 402 mm
Gewicht: 14,2 kg
Aansluiting inlaat: slangaansluiting Ø 10mm
Aansluiting uitlaat: slangaansluiting Ø 10mm

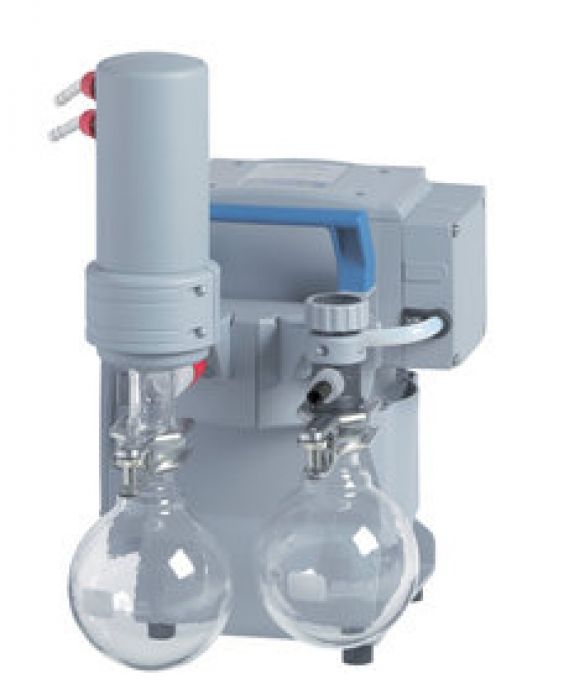

(afbeelding met standaard koeler)
Merk | Vacuubrand |
---|---|
Zuigvermogen in m3/h | 2 |
Eindvacuüm mbar | 7 |
Uitvoering pomp | chemisch bestendig |
Vacuümregeling | nee |
Afscheider zuigzijde | Ja |
Condenser uitlaat | Ja |
Vacuubrand membraanpomp opstelling MZ2CNT + AK +EKP
- Chemisch bestendige pompopstelling op basis van de membraanpomp type MZ 2C NT
- Uitgevoerd met een afscheider aan de zuigzijde en een Pletierkoeler aan de drukzijde, compact opgebouwd op een pompdrager
- De rondkolven hebben een inhoud van 500ml en zijn gecoat teneinde implosies te voorkomen
- Geschikt voor gebruik bij: rotatiefilmverdampers, vacuümconcentrators en vacuümstoven
- Gegevens van de membraanpomp: Tweetrapspomp, 2 cylinders met uitmuntende bestendigheid tegen agressieve gassen
- Alle materialen die in contact kunnen komen met de gassen zijn vervaardigd van hoogwaardige fluorpolymeren
- Zeer lange levensduur van kleppen en membranen, gecombineerd met een onderhoudsvrij aandrijfsysteem maken de pomp ook geschikt voor continue gebruik
- Compleet met gasbalastventiel voor optimale prestaties ook bij het werken met gemakkelijk condenseerbare dampen
EKP Peltier koeler
The Peltronic® emission condenser performs condensation of solvent vapors without external coolant such as water or dry ice. It works electronically and uses Peltier elements as cooling system. All wetted parts are highly chemically resistant. The condenser is especially designed to be added to existing pumping units and allows the replacement of common condensers working with external coolant. The condenser is ideally suited for applications where cooling water is not available or desired, or in case of cost and productivity concerns associated with dry ice condensers. It is often used to reduce cooling water usage for environmental reasons or to prevent the risk of flooding from cooling water plumbing leakage. This frequently is requested for vacuum networks built into lab furniture. If the Peltronic® is connected to a CVC 3000 vacuum controller it is switched on/off automatically on demand. The complete pumping units PC 3001 VARIOpro EK Peltronic and PC 3012 EK Peltronic are available serially, most other pumping units are available with Peltronic® on request.
Technicla data EKP
Technical data | Unit | Peltronic |
---|---|---|
Ambient temperature range (operation) | °C | 10 - 40 |
Ambient temperature range (storage) | °C | -10 - 60 |
Rated motor power | kW | 0.16 |
Degree of protection | IP 20 | |
Dimensions (L x W x H) | mm | 175 x 179 x 392 |
Weight | kg | 4.3 |
ATEX conformity (only 230V) | II 3G IIC T3 X Internal Atm. only | |
Items supplied | Condenser ready for use with electronic control, status indicator, temperature control, switch, PTFE tubing ready to connect to many VACUUBRAND pumping units, catchpot 500ml, catchpot clamp. Universal power supply; please order power cable separately. | |
Accessories | Rubber vacuum tubing DN 10 mm (686002) PTFE tubing DN 10/8 mm (638644) Liquid level sensor (699908) |
