Vacuubrand PC201NT chemie opstelling+reg. 1,5 mbar 3,4 m3/h
Art.Nr.
L0620737000

Vacuubrand PC201NT chemie opstelling+reg. 1,5 mbar 3,4 m3/h

Art.Nr.
L0620737000
Chemisch bestendige opstelling, chemiemembraanpomp MD 4C & manuele vacuümcontroler
Met afscheider en condensor.
Ideaal voor rotatiefilmverdamper en oplosmiddelen met hoge kookpunt
Eindvacuüm: 1,5 mbar
Pompsnelheid: 3,4 m3/h
Afmetingen (lxbxh): 326 x 243 x 402 mm
Gewicht: 17,5 kg
Aansluiting inlaat: slangaansluiting DN 10 mm
Aansluiting uitlaat: slangaansluiting Ø 10mm
Bekijk alle specificaties
Specificaties
Specificaties
Merk Vacuubrand
Zuigvermogen in m3/h 3,40
Eindvacuüm mbar 1,50
Uitvoering pomp chemisch bestendig
Vacuümregeling analoog
Afscheider zuigzijde Ja
Condenser uitlaat Ja
Productbeschrijving

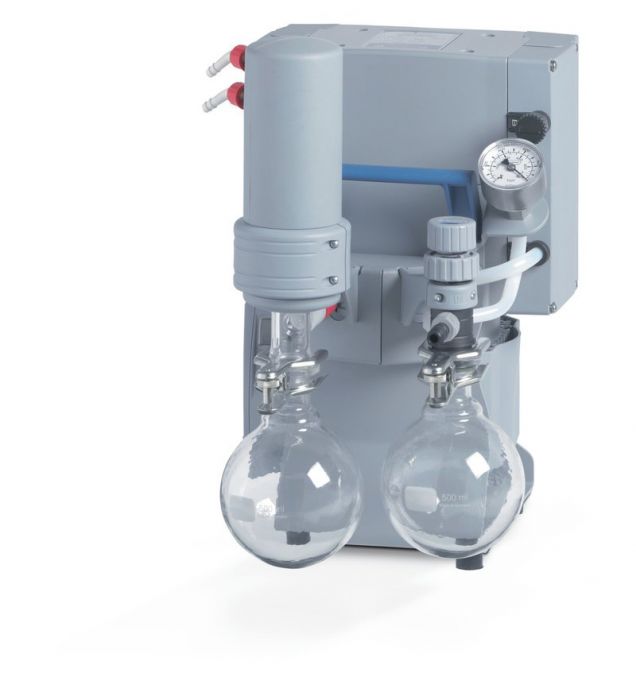

Vacuubrand PC 201 NT chemie opstelling + analoge vacuumregelaar

  • Chemisch bestendige pompopstelling op basis van de membraanpomp type MD 4C NT
  • Uitgevoerd met een afscheider, regelkraan en vacuümmeter aan de zuigzijde , en een waterkoeler aan de drukzijde, compact opgebouwd op een pompdrager
  • De rondkolven hebben een inhoud van 500ml en zijn gecoat teneinde implosies te voorkomen
  • Geschikt voor gebruik bij: rotatiefilmverdampers, vacuümconcentrators en vacuümstoven
  • Gegevens van de membraanpomp: Drietrapspomp, 4 cylinders met uitmuntende bestendigheid tegen agressieve gassen
  • Alle materialen die in contact kunnen komen met de gassen zijn vervaardigd van hoogwaardige fluorpolymeren
  • Zeer lange levensduur van kleppen en membranen, gecombineerd met een onderhoudsvrij aandrijfsysteem maken de pomp ook geschikt voor continue gebruik
  • Compleet met gasbalastventiel voor optimale prestaties ook bij het werken met gemakkelijk condenseerbare dampen

Technische gegevens

  • Eindvacuüm: 1,5 mbar
  • Pompsnelheid: 3,4 m3/h
  • Vermogen: 250 Watt
  • Afmetingen (lxbxh): 326 x 242 x 402 mm
  • Gewicht: 17,5 kg
  • Aansluiting inlaat: slangaansluiting Ø 10mm
  • Aansluiting uitlaat: slangaansluiting Ø 10mm

Meer informatie van Vacuubrand website

This chemistry pumping unit has a wide range of applications like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories. Typical applications are rotary evaporators, vacuum concentrators and vacuum drying ovens with high boiling solvents. The manual flow control valve regulates the effective pumping speed at the vacuum connection; the vacuum manometer offers an analog vacuum display. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The exhaust waste vapor condenser enables near-100-percent solvent recovery.

Performance features

  • outstanding chemical resistance and superior vapor tolerance
  • exceptionally high performance even at low vacuum
  • excellent ultimate vacuum even with gas ballast
  • manual vacuum control, analog vacuum display
  • excellent environmental friendliness due to efficient solvent recovery

Technical data

Technical dataUnitPC 201 NT
Vacuum controller   Manometer
Number of heads / stages   4 / 3
Max. pumping speed at 50/60 Hz m3/h 3.4 / 3.8
Max. pumping speed at 50/60 Hz cfm 2.0 / 2.2
Ultimate vacuum (abs.) mbar/torr 1.5 / 1.1
Ultim. vac. (abs.) with gas ballast mbar/torr 3 / 2.2
Ambient temperature range (operation) °C 10 - 40
Ambient temperature range (storage) °C -10 - 60
Max. back pressure (abs.) bar 1.1
Inlet connection   Hose nozzle DN 8-10 mm
Outlet connection   Hose nozzle DN 8-10 mm
Coolant connection   2 x hose nozzle DN 6-8 mm
Rated motor power kW 0.25
Rated motor speed at 50/60 Hz min-1 1500/1800
Degree of protection   IP 40
Dimensions (L x W x H) mm 326 x 243 x 402
Weight kg 17.5
Noise level at 50 Hz, typ. dBA 45
NRTL certification   Canada and the USA
ATEX conformity (only 230V)   II 3G IIC T3 X Internal Atm. only
Items supplied   Pumping unit completely mounted, ready for use, with manual.
Accessories   Rubber vacuum tubing DN 8 mm (686001)
