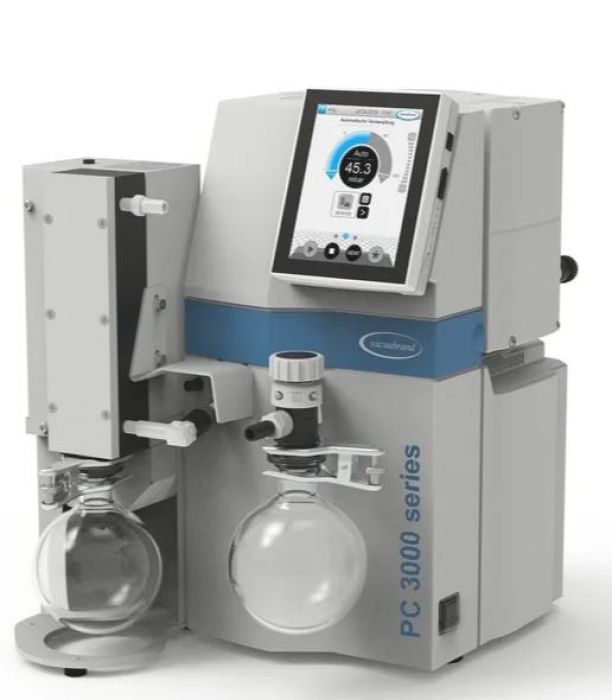

Vacuubrand PC3004 VARIO Select EKP opstelling 1,5mbar 4,6m3/h
Art.Nr.
L0620737574

Vacuubrand PC3004 VARIO Select EKP opstelling 1,5mbar 4,6m3/h

Art.Nr.
L0620737574
Vacuubrand PC3004 VARIO met EK Peltierkoeling
Chemisch bestendig
Bestaande uit Vario membraanpomp, Vacuu Select vacuümcontroler,
afscheider en Peltier emmissiekoeler
Eindvacuüm: 1,5 mbar
Pompsnelheid: 4,6 m3/h
Vermogen: max. 530 Watt
Afmetingen (lxbxh): 405 x 361 x 457 mm
Gewicht: 25,2 kg
Aansluiting inlaat: slangaansluiting Ø 10mm
Aansluiting uitlaat: slangaansluiting Ø 10mm
Geleverd zonder netsnoeren (per pomp 2 nodig)
Bekijk alle specificaties

Sorry, dit product kunt u niet toevoegen aan uw winkelwagen.

Vul onderstaande gegevens in en wij maken zo snel mogelijk een concrete offerte voor u op.

Specificaties
Specificaties
Merk Vacuubrand
Zuigvermogen in m3/h 4,60
Eindvacuüm mbar 1,50
Uitvoering pomp chemisch bestendig
Vacuümregeling digitaal
Afscheider zuigzijde Ja
Condenser uitlaat Ja
Productbeschrijving

PC 3004 VARIO select EKP

VARIO® chemistry pumping unit
VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies work in the laboratory
automatic boiling point detection and adjustment of the vacuum for short process times
powerful vacuum pump meets high vacuum requirements for most high boiling solvents
extraordinary diaphragm life, therefore minimum operational and servicing costs
excellent environmental compatibility through low energy consumption and efficient solvent recovery


VARIO® chemistry pumping unit in action

The PC 3004 VARIO select EKP pumping unit precisely controls the vacuum level in order to achieve unparalleled process control. With its high pumping speed and deep ultimate vacuum, this pump is suitable for demanding applications with even high boiling point solvents. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications. The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run fully automated distillations, or create your own application with simple drag-and-drop editing. For solvent evaporation, the VACUU·SELECT controller continuously detects the boiling point and automatically adjusts the vacuum process as necessary. And the VARIO control algorithm maintains the desired vacuum level without running the motor faster than necessary. This prevents bumping and foaming, makes the pump whisper quiet, and extends maintenance intervals. The inlet separator, made of glass with a robust protective coating, prevents particles and liquid droplets from entering the pump, preventing damage and extending pump life.The PC 3004 VARIO select EKP with Peltronic emissions condenser achieves high solvent recovery without the need for a coolant line or dry ice supply. Typical applications are all evaporation processes. They can be run fully automatically and with shorter process times and extra sensitivity even for challenging mixtures at the same time. The VARIO® control ensures high process reliability through prevention of boiling retardation or foaming. It detects boiling pressures automatically and self-adapts to changing process parameters at any time. This all without any need of parameter input or the use of a solvent library. Also in many other applications and in laboratory vacuum networks the VARIO® control brings significant advantages as it provides always the appropriate pumping speed. The VACUU·BUS® interface facilitates an user-friendly configuration of even complex vacuum installations.
