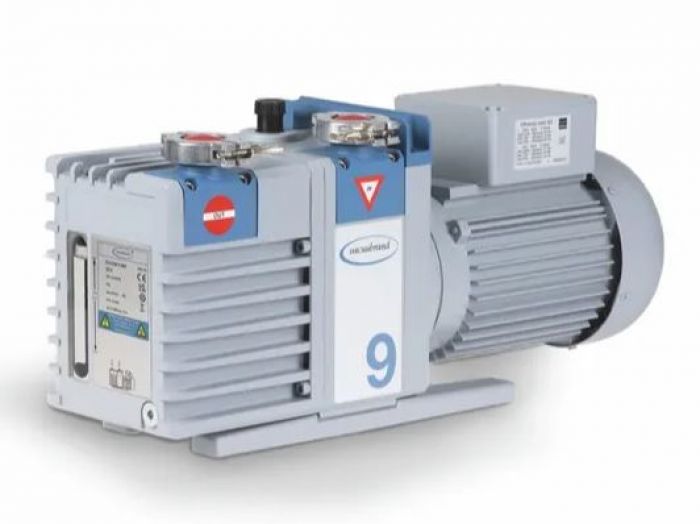

Vacuubrand RE 9 draaischuifpomp 1 x 10-1 mbar 5,7 m3/h
Art.Nr.
L0620797170
Vacuubrand RE 9 draaischuifpomp 1 x 10-1 mbar 5,7 m3/h
Art.Nr.
L0620797170
Enlektraps 230V
Eindvacuüm:
1 x 10-1 mbar
Pompsnelheid: 8,9 m3/h
Vermogen: 370 Watt
Afmetingen (lxbxh):
460 x 152 x 232 mm
Gewicht: 21,4 kg
Aansluiting inlaat:
kleinflensaansluiting DN25
Aansluiting uitlaat:
kleinflensaansluiting DN25
| Merk | Vacuubrand |
|---|---|
| Zuigvermogen in m3/h | 5,70 |
| Eindvacuüm mbar | 0,10 |
| Uitvoering pomp | niet chemisch bestendig |
| Vacuümregeling | nee |
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
RZ 9 Rotary vane pump
very high flow rates even at vacuum levels approaching ultimate vacuum
high water vapor tolerance due to efficient gas ballast; very good ultimate vacuum even with gas ballast
vacuum-tight at switch-off; external anti-suckback valve not needed
large oil volume: Long intervals between oil changes
ease of maintenance due to telescopic design
Rotary vane pump in action
The RZ 9 is a two-stage powerful rotary vane pump for fast evacuation of vessels and at higher gas flow rates. Typical applications are lyophilization, fine vacuum distillation and drying chambers. The two-stage rotary vane pump RZ 9 is also available in various packages with matching accessories such as exhaust filter FO and valve VS 25. Rotary vane pumps are used for a process vacuum of a few mbar to 10-3 mbar.
