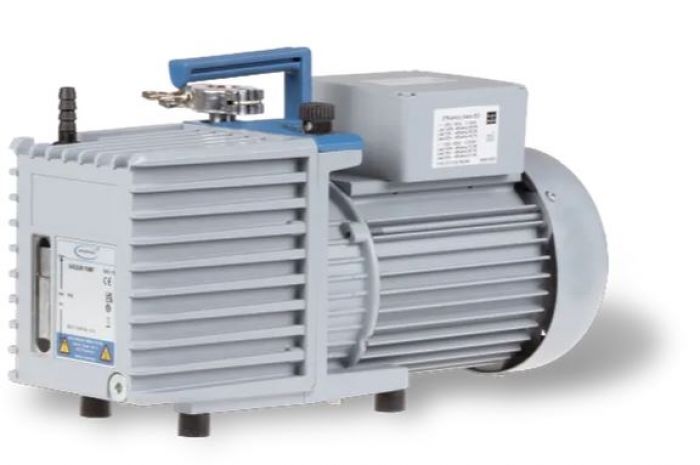

Vacuubrand RZ 6 draaischuifpomp 4 x 10-4 mbar 5,7 m3/h
Art.Nr.
L0620798130
Vacuubrand RZ 6 draaischuifpomp 4 x 10-4 mbar 5,7 m3/h
Art.Nr.
L0620798130
Dubbeltraps 220V
Eindvacuüm: 4 x 10-4 mbar
Pompsnelheid: 5,7 m3/h
Vermogen: 300 Watt
Afmetingen (lxbxh): 370 x 142 x 207 mm
Gewicht: 16,4 kg
Aansluiting inlaat: kleinflensaansluiting DN16
Aansluiting uitlaat: slangaansluiting Ø 10mm
Eindvacuüm: 4 x 10-4 mbar
Pompsnelheid: 5,7 m3/h
Vermogen: 300 Watt
Afmetingen (lxbxh): 370 x 142 x 207 mm
Gewicht: 16,4 kg
Aansluiting inlaat: kleinflensaansluiting DN16
Aansluiting uitlaat: slangaansluiting Ø 10mm
- Vacuubrand RS4
| Merk | Vacuubrand |
|---|---|
| Zuigvermogen in m3/h | 5,70 |
| Eindvacuüm mbar | 0 |
| Uitvoering pomp | niet chemisch bestendig |
| Vacuümregeling | nee |
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
RZ 6 Rotary vane pump
high flow rates even at vacuum levels approaching ultimate vacuum
high water vapor tolerance due to efficient gas ballast; very good ultimate vacuum even with gas ballast
vacuum-tight at switch-off; external anti-suckback valve not needed
large oil volume: Long intervals between oil changes
ease of maintenance due to telescopic design
These powerful rotary vane pumps feature a particularly compact design and low weight for pumps of this capacity. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium to increased gas flow rate. Various packages including pump, oil mist filter, etc. are available. Rotary vane pumps are used when an ultimate vacuum between a few mbar and down to 10-3 mbar has to be attained. Typical applications are degassing, lyophilization, fine vacuum distillation and drying chambers.
