Vacuubrand RZ 6 draaischuifpomp + filter + ventiel
Art.Nr.
L0620798039

Vacuubrand RZ 6 draaischuifpomp + filter + ventiel

Art.Nr.
L0620798039

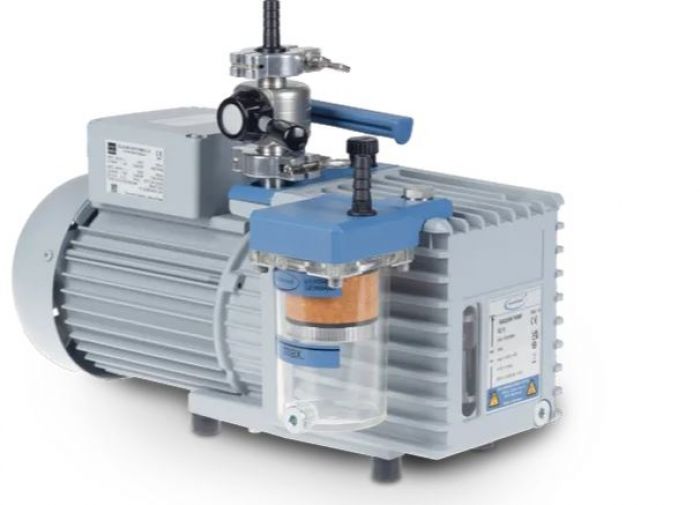

Vacuubrand RZ6 draaischuifpomp
Compleet met: olienevelfilter FO en vacuümventiel VS16
Dubbeltraps 220V Eindvacuüm: 4 x 10-4 mbar
Pompsnelheid: 5,7 m3/h Vermogen: 300 Watt
Afmetingen (lxbxh): 370 x 142 x 207 mm
Gewicht: 16,4 kg
Aansluiting inlaat: kleinflensaansluiting DN16
Aansluiting uitlaat: slangaansluiting Ø 10mm
Bekijk alle specificaties
Specificaties
Specificaties
Merk Vacuubrand
Zuigvermogen in m3/h 5,70
Uitvoering pomp niet chemisch bestendig
Vacuümregeling nee
Afscheider zuigzijde Nee
Condenser uitlaat Nee
Productbeschrijving

Vacuubrand draaischuifpomp RZ 6

  • Dubbeltrapspomp, compacte en geruisarme pomp met hoge doorstroomsnelheid, tot dichtbij het bereiken van het eindvacuüm.
  • Hoge waterdamp verdraagbaarheid door een efficiënt inzetbaar gasbalastventiel.
  • Vacuümdicht bij uitschakelen of stroomuitval.
  • Door telescopische opbouw eenvoudig te manipuleren bij het onderhoud.

Technische gegevens

  • Eindvacuüm: 4 x 10-4 mbar
  • Pompsnelheid: 5,7 m3/h
  • Vermogen: 300 Watt
  • Afmetingen (lxbxh): 370 x 142 x 207 mm
  • Gewicht: 16,4 kg
  • Aansluiting inlaat: kleinflensaansluiting DN16
  • Aansluiting uitlaat: slangaansluiting Ø 10mm

Meer informatie van Vacuubrand website

These powerful rotary vane pumps feature an unusually compact design and low weight for pumps of this capacity. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium to increased gas flow rate. The two-stage rotary vane pump RZ 6 is also available as a package including pump, oil mist filter, isolation valve and Pirani gauge set DCP + VSP 3000.

Performance features

  • high flow rates even at vacuum levels approaching ultimate vacuum
  • high water vapor tolerance due to efficient gas ballast; very good ultimate vacuum even with gas ballast
  • vacuum-tight at switch-off; external anti-suckback valve not needed
  • large oil volume: Long intervals between oil changes
  • ease of maintenance due to telescopic design

Technical data

Technical data Unit RZ 6 +FO +VS 16 +Set DCP+VSP 3000
Number of stages   2
Max. pumping speed at 50/60 Hz m3/h 5.7 / 6.8
Max. pumping speed at 50/60 Hz cfm 3.4 / 4.0
Ultimate partial vacuum (abs.) mbar 4 x 10-4
Ultimate vacuum (abs.) mbar/torr 2 x 10-3 / 1.5 x 10-3
Ultim. vac. (abs.) with gas ballast mbar/torr 1 x 10-2 / 0.75 x 10-2
Water vapor tolerance with gas ballast mbar 40
Ambient temperature range (operation) °C 12 - 40
Ambient temperature range (storage) °C -10 - 60
Oil capacity (B-Oil) min./max. l 0.34 / 0.73
Max. back pressure (abs.) bar 1.1
Inlet connection   Small flange KF DN 16
Outlet connection   Hose nozzle DN 8-10 mm
Rated motor power kW 0.3
Rated motor speed at 50/60 Hz min-1 1500/1800
Degree of protection   IP 40
Dimensions (L x W x H) mm 370 x 227 x 207
Weight kg 17.2
Noise level at 50 Hz, typ. dBA 50
Items supplied   Pump oil filled and completely mounted, ready for use, with manual, with oil mist filter FO, valve VS 16 and Pirani vacuum gauge DCP 3000 +VSP3000
Accessories   Rubber vacuum tubing DN 10 mm (686002)
Stainless steel tubing KF DN 16 (1000 mm: 673336)
Separator inlet side AK R 5/6 (698006)
