Vacuubrand Vacuu-Select controller & regelaar 1080-0,1mbar
Art.Nr.
L0620700080

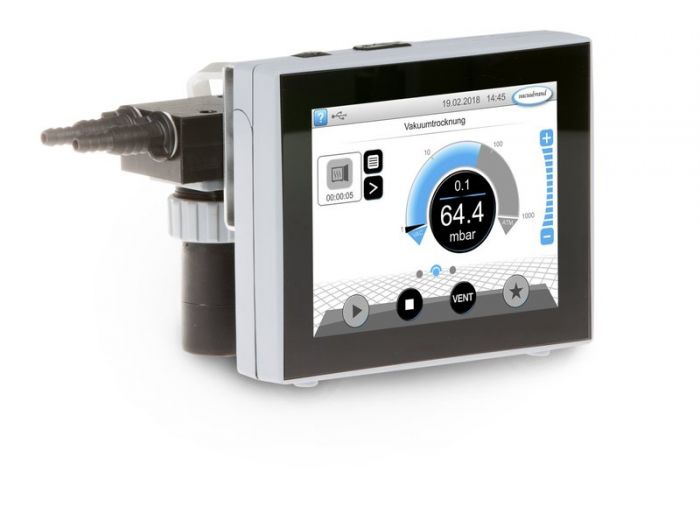

Vacuubrand Vacuu-Select controller & regelaar 1080-0,1mbar
Art.Nr.
L0620700080
Nieuwe generatie vacuümmeter & vacuümregelaar
Met grote touchscreen applicatie gerichte besturing
Geschikt voor statiefmontage
Geschikt voor alle merken vacuümpompen
In te bouwen in de vacuümleiding
Meet& regelbereik 1080-0,1 mbar
Inclusief ontluchtingsventiel
Beheert vacuüm processen door het regelen van vacuümpompen
Makkelijke bediening
Tot 10 volledig configureerbare programma's (met maximaal 10 stappen)
2 x slangaansluiting DN 6/10 mm
Afmeting (lxbxh): 191 x 127 x 187 mm
Gewicht: 2 kg
- CVC3000 EC3
- CVC3000 detect
| Merk | Vacuubrand |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
Vacuubrand Vacuu-Select controller & regelaar 1080-0,1mbar
The VACUU·SELECT complete controller provides enhanced process efficiency to applications supported by a vacuum source such as a basic pump or a powerful vacuum network. The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run pre-defined applications at the touch of a button, or create your own application with simple drag-and-drop editing. The controller is available as a benchtop unit, ready for mounting on lab scaffolding, or as a built-in version for lab casework. The integrated controller includes the VACUU·SELECT vacuum controller, a check valve, and a chemical-resistant solenoid isolation valve. The ceramic vacuum sensor and venting valve are built right into the body of the VACUU·SELECT controller. The compact unit is easy to install and setup. With its intuitive, application-based interface, the controller offers predefined vacuum processes for all common laboratory applications. In the case of solvent evaporation, it detects the boiling pressure and then holds the pressure level stable using two-point control.
Performance features
- supplied complete and ready for use, including integrated valve and common hose connections
- predefined vacuum applications and automatic boiling point detection saves time
- simple setup - connect VACUU·SELECT in-line between pump and vacuum application
- integrated vent valve allows inert gas connection
- integrated check valve minimizes interaction with other applications on the same vacuum supply
Technical data
| Technical data | Unit | VACUU·SELECT |
|---|---|---|
| Vacuum sensor | VACUU·SELECT Sensor | |
| Upper measuring limit | mbar/torr | 1080 / 810 |
| Lower measuring limit | mbar/torr | 0.1 / 0.1 |
| Measurement principle | Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure | |
| Accuracy of measurement | < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.) | |
| Temperature coefficient | < 0.15 mbar/hPa/0.11 torr /K | |
| Venting valve, connection | Integrated, hose nozzle DN 4-5 mm | |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. media temp. for continuous operation / short times | °C | 40 / 80 |
| Material of outer housing | Robust plastic housing with good chemical resistance | |
| Degree of protection | IP 40 | |
| Degree of protection of front side (also built-in version) | IP 42 | |
| Max. power for VACUU·BUS® (24V DC) | 4 A | |
| Cable length of external power supply | m | 2 |
| Interface | Ethernet / USB (Type A) | |
| Dimensions (L x W x H) | mm | 152 x 127 x 189 |
| Weight | kg | 2 |
| ATEX-approval | II 3G IIC T4 X Internal Atm. only |
