Vacuubrand Vacuu-Select vacuümcontroller + VSP 3000 KF DN16
Art.Nr.
L0620700101
Vacuubrand Vacuu-Select vacuümcontroller + VSP 3000 KF DN16
Art.Nr.
L0620700101
Complete vacuümcontroller met pirani meetsensor
Geschikt voor vacuümregeling van draaischuifpompen RE&RZ 2.5/ RE&RZ 6 en RC6 tot 0,001 mbar Inclusief VV-B-15C vacuümregelventiel T-stuk, SW Dn10 slang tule DN10 en aansluitdelen
Voorzien van een kleinflens DN16 aansluiting
Afmetingen (lxbxh) 152 x 127 x 41 mm
Gewicht circa 0,6 kg
Levering zonder vacuümpomp
Geschikt voor vacuümregeling van draaischuifpompen RE&RZ 2.5/ RE&RZ 6 en RC6 tot 0,001 mbar Inclusief VV-B-15C vacuümregelventiel T-stuk, SW Dn10 slang tule DN10 en aansluitdelen
Voorzien van een kleinflens DN16 aansluiting
Afmetingen (lxbxh) 152 x 127 x 41 mm
Gewicht circa 0,6 kg
Levering zonder vacuümpomp
| Merk | Vacuubrand |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
Vacuubrand Vacuu-Select vacuümcontroller + VSP 3000 KF DN16

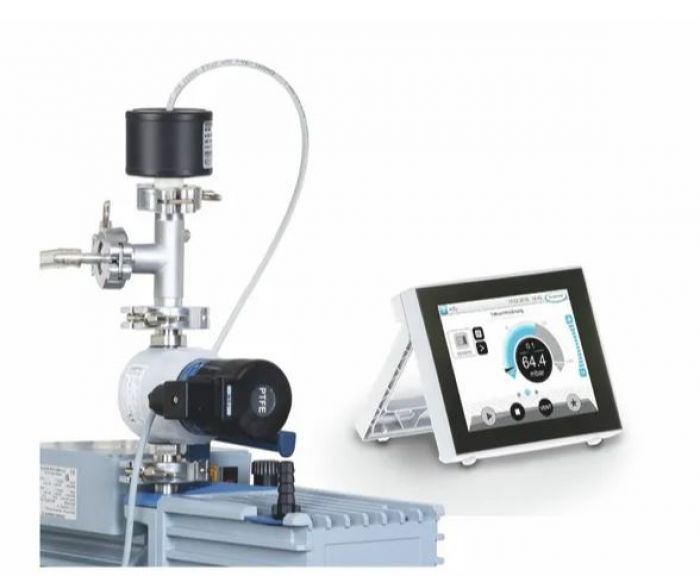

The VACUU·SELECT fine vacuum control packages are designed for vacuum control in the range of 1 mbar to 10-3 mbar. With its intuitive, application-based user interface, the controller allows you to quickly get your fine vacuum process under control. For advanced processes, pre-defined applications can be modified, and new applications can be created to optimize your process conditions.
These packages include the VACUU·SELECT controller with fine vacuum gauge, a chemical-resistant inline isolation valve (VV-B 15C), and the accessories required for connection to your vacuum system via small flange (KF) connections. VACUUBRAND offers fine vacuum control packages with two different small flange connections. The KF DN 16 fine vacuum control package is compatible with our rotary vane pump models RE / RZ 2.5 to RE / RZ 6 and our HYBRID pump RC 6. The KF DN 25 fine vacuum control package is configured for use with our RE / RZ 9 rotary vane pumps. The included inline solenoid valve and sensor are automatically configured via the proprietary VACUU·BUS system.
Performance features
- Complete package for vacuum control of all fine vacuum applications in chemical labs, with continuous control range from 5 bar to fine vacuum (10-3 mbar)
- graphic user interface for simple operation
- predefined applications for quick, reproducible results
- application editor allows easy customization
- proprietary Pirani-type fine vacuum gauge has superior chemical resistance and mechanical robustness
Technical data
| Technical data | Unit | VACUU·SELECT + VSP 3000, KF DN 16 |
|---|---|---|
| Vacuum sensor | VSP 3000 | |
| Cable length of vacuum sensor | m | 2 |
| Upper measuring limit | mbar/torr | 1000 / 750 |
| Lower measuring limit | mbar/torr | 1 x 10-3 / 1 x 10-3 |
| Measurement principle | Thermal conductivity (Pirani), chemically resistant plastics / ceramics | |
| Accuracy of measurement | +- 15% of indicated value in the range 0.01-5 mbar/hPa/torr | |
| Temperature coefficient | +- 0.2 mbar/hPa/0.15 torr /K | |
| Venting valve, connection | No | |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. media temp. for continuous operation / short times | °C | 40 / 80 |
| Material of outer housing | Robust plastic housing with good chemical resistance | |
| Degree of protection | IP 40 | |
| Degree of protection of front side (also built-in version) | IP 42 | |
| Max. power for VACUU·BUS® (24V DC) | 4 A | |
| Cable length of external power supply | m | 2 |
| Interface | Ethernet / USB (Type A) | |
| Dimensions (L x W x H) | mm | 152 x 127 x 41 |
| Weight | kg | 0.6 |

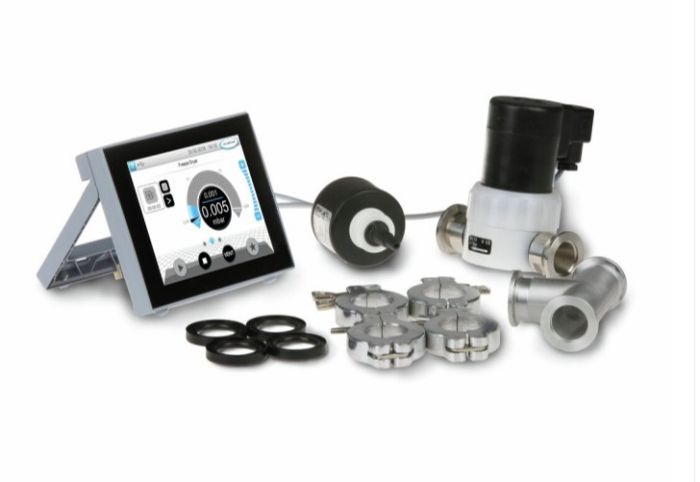

| Items supplied | Package for fine vacuum control, consisting of: Vacuum controller VACUU-SELECT (without internal vacuum sensor and venting valve) with VSP 3000 and power supply, in-line solenoid valve VV-B 15C KF DN 16, T-piece KF DN 16, hose nozzle DN 10 mm (PP), clamping and sealing rings, ready for use, with manual. | |
| Accessories | Rubber vacuum tubing DN 10 mm (686002) DAkkS calibration with first delivery (900214) DAkkS recalibration (900215) VACUU·BUS® accessories PTFE tubing KF DN 16 (1000 mm: 686031) |
