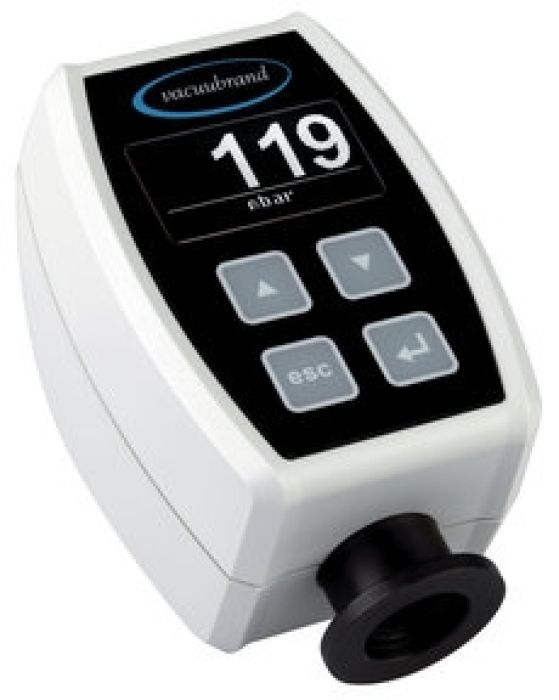

Vacuubrand Vacuu-View digitale vacuummeter 1080 - 0.1 mbar
Art.Nr.
L0620683220
Vacuubrand Vacuu-View digitale vacuummeter 1080 - 0.1 mbar
Art.Nr.
L0620683220
Meetbereik: 1080 - 0.1 mbar
Met geïntegreerde vacuümsensor gemaakt van aluminiumoxide keramiek met een uitstekende weerstand tegen corrosie en een superieure stabiliteit op lange termijn
Meetonzekerheid : <+/- 1 mbar
Eenvoudige bediening door middel van menu gestuurd display (instelling druk: torr mbar/verlichting display enz.)
Verlicht eenvoudig afleesbaar dsiplay
Met kleinflens DN16 aansluiting
Levering inclusief slangnippel adapter DN6/10 (in te schoeven in de kleinflens)
Levering inclusief netadapter
| Merk | Vacuubrand |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
Vacuubrand Vacuu-View digitale vacuummeter
For the monitoring of your vacuum processes in the rough vacuum range, the new vacuum gauges VACUU·VIEW are perfect! Chemically resistant ceramic diaphragm sensor for measurement in the rough vacuum range. VACUU·VIEW provides gas-independent pressure indication with precise capacitive readout.
Performance features
- highest precision in the range from atmosphere down to 0.1 mbar, perfect gauge for all rough vacuum applications
- compact design with integrated sensor, one piece equipment for direct connect at point of interest
- chemically resistant ceramic diaphragm sensor, highly reliable at harsh laboratory conditions even in case of very aggressive chemicals
- illuminated display, easy to read
- display with menu driven handling easy to use e.g. for unit settings
Technical data
| Technical data | Unit | VACUU·VIEW |
|---|---|---|
| Vacuum sensor | Integr. | |
| Upper measuring limit | mbar/torr | 1100 / 825 |
| Lower measuring limit | mbar/torr | 0.1 / 0.075 |
| Measurement principle | Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure | |
| Accuracy of measurement | < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.) | |
| Temperature coefficient | < 0.07 mbar/hPa/0.05 torr /K | |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. media temp. for continuous operation / short times | °C | 40 / 80 |
| Material of outer housing | Robust plastic housing with good chemical resistance | |
| Degree of protection | IP 54 | |
| Cable length of external power supply | m | 2 |
| Dimensions (L x W x H) | mm | 103 x 62 x 50 |
| Weight | kg | 0.19 |
| ATEX-approval | II 3G IIC T3 X Internal Atm. only | |
| Items supplied | Vacuum gauge with integrated vacuum sensor, ready for operation, with kit hose nozzle DN 6/10 mm, wall-plug power supply and manual. | |
| Accessories | Rubber vacuum tubing DN 10 mm (686002) PTFE tubing KF DN 16 (1000 mm: 686031) Stainless steel tubing KF DN 16 (1000 mm: 673336) DAkkS calibration with first delivery (900214) DAkkS recalibration (900215) |
