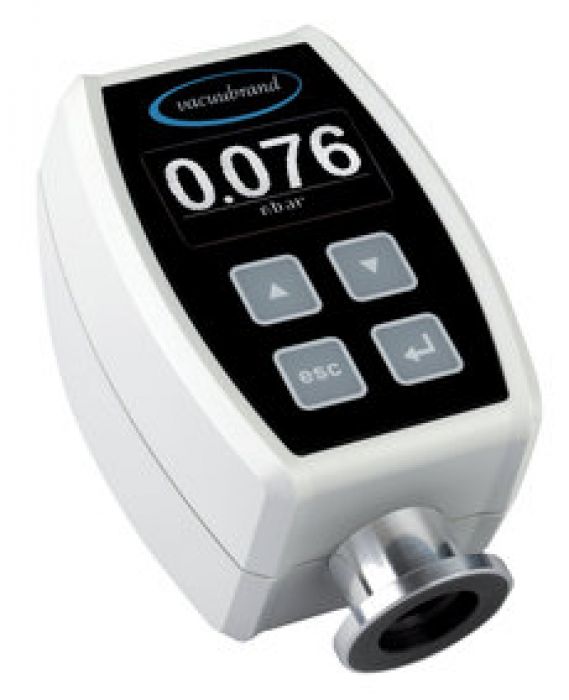

Vacuubrand Vacuu-View Extended vacuummeter 1080 - 0.001 mbar
Art.Nr.
L0620683210
Vacuubrand Vacuu-View Extended vacuummeter 1080 - 0.001 mbar
Art.Nr.
L0620683210
Meetbereik: 1080 - 0.001 mbar
Met geïntegreerde vacuümsensor gemaakt van aluminiumoxide keramiek met een uitstekende weerstand tegen corrosie en een superieure stabiliteit op lange termijn
Meetonzekerheid : <+/- 0.2 mbar
Eenvoudige bediening door middel van menu gestuurd display (instelling druk: torr mbar/verlichting display enz.)
Verlicht eenvoudig afleesbaar dsiplay
Met kleinflens DN16 aansluiting
Levering inclusief slangnippel adapter DN6/10 (in te schoeven in de kleinflens)
Levering inclusief netadapter
| Merk | Vacuubrand |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
Vacuubrand Vacuu-View Extended digitale vacuummeter
For the monitoring of your vacuum processes in the rough and fine vacuum range, the new vacuum gauges VACUU·VIEW extended are perfect! The heavy duty combination of ceramic diaphragm sensor and ceramic jacketed Pirani sensor ensures reliable readings in the wide range from atmosphere down to 10-3 mbar.
Performance features
- precision and chemical resistance in an exceptionally wide range from atmosphere down to 10-3 mbar, one gauge only for both rough and fine vacuum
- compact design with integrated sensors, one piece equipment for direct connect at point of interest
- the heavy duty combination of ceramic diaphragm sensor and ceramic jacketed Pirani sensor ensures reliable readings in a wide range
- illuminated display, easy to read
- display with menu driven handling, easy to use e.g. for unit settings
Technical data
| Technical data | Unit | VACUU·VIEW extended |
|---|---|---|
| Vacuum sensor | Integr. | |
| Upper measuring limit | mbar/torr | 1100 / 825 |
| Lower measuring limit | mbar/torr | 0.001 / 0.001 |
| Measurement principle | Ceramic diaphragm sensor + ceramic jacketed Pirani sensor | |
| Accuracy of measurement | +- 15% of indicated value in the range from 0.01-10 mbar / +-3mbar for > 10mbar | |
| Temperature coefficient | +- 0.2 mbar/hPa/0.15 torr /K | |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. media temp. for continuous operation / short times | °C | 40 / 80 |
| Material of outer housing | Robust plastic housing with good chemical resistance | |
| Degree of protection | IP 54 | |
| Cable length of external power supply | m | 2 |
| Dimensions (L x W x H) | mm | 103 x 62 x 50 |
| Weight | kg | 0.19 |
| Items supplied | Vacuum gauge with integrated vacuum sensor, ready for operation, with kit hose nozzle DN 6/10 mm, wall-plug power supply and manual. | |
| Accessories | Rubber vacuum tubing DN 10 mm (686002) PTFE tubing KF DN 16 (1000 mm: 686031) Stainless steel tubing KF DN 16 (1000 mm: 673336) DAkkS calibration with first delivery (900214) DAkkS recalibration (900215) |
