Vacuubrand VB M-B electromagnetisch beluchtingventiel

Vacuubrand VB M-B extern electromagnetisch beluchtingsventiel

Air admittance valves VB and VB M-B

• Air admittance valve VB M-B with KF DN 16 and hose nozzle DN 6/10
• These valves are compact air admittance valves with small flange. The VB valve is manually operated. On rotating the knurled screw cap the valve disc is lifted off the seating and air enters through the holes. The valve disc is rotatable. Therefore the valve seat seal is prevented against wear during opening and closing.

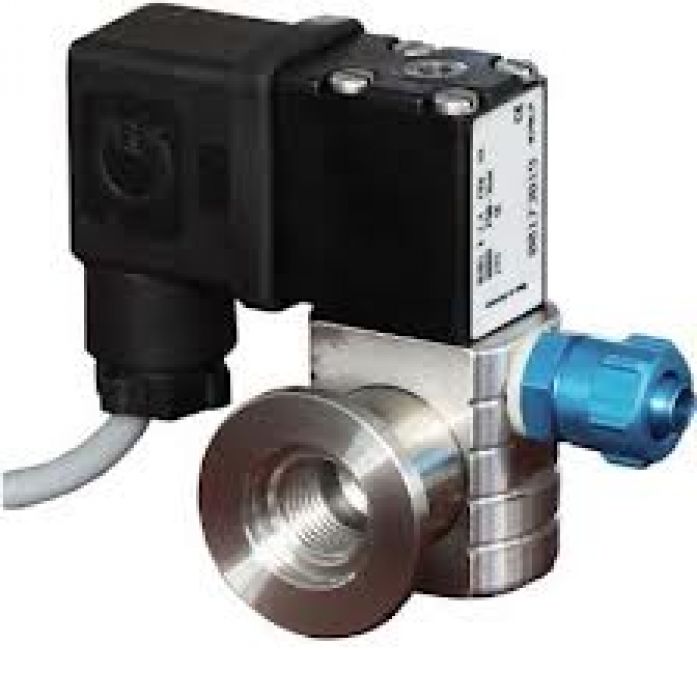

• The electromagnetic solenoid valve VB M-B with valve orifice diameter 2.4 mm and VACUU·BUS® control connection operates in conjunction with vacuum controllers CVC 3000, VNC 2 or the vacuum gauge DCP 3000. It is frequently used for remote-controlled systems like interlocking systems and inert gas flushing. The gas inlet has a tubing connection, e.g., for inert gas. Larger venting valves are available on request.
