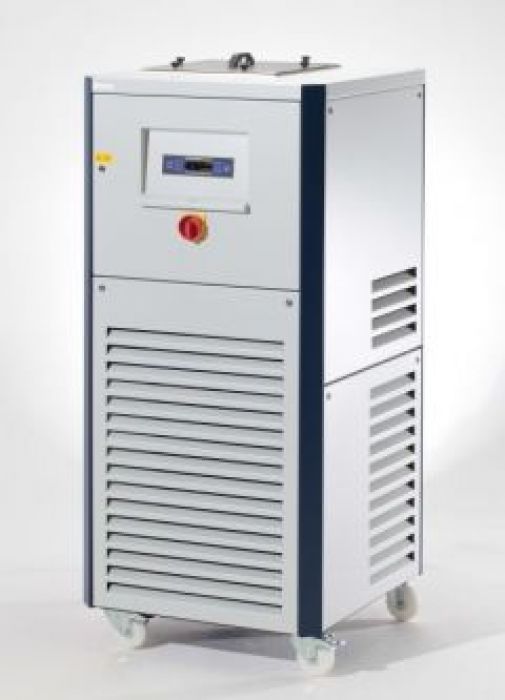

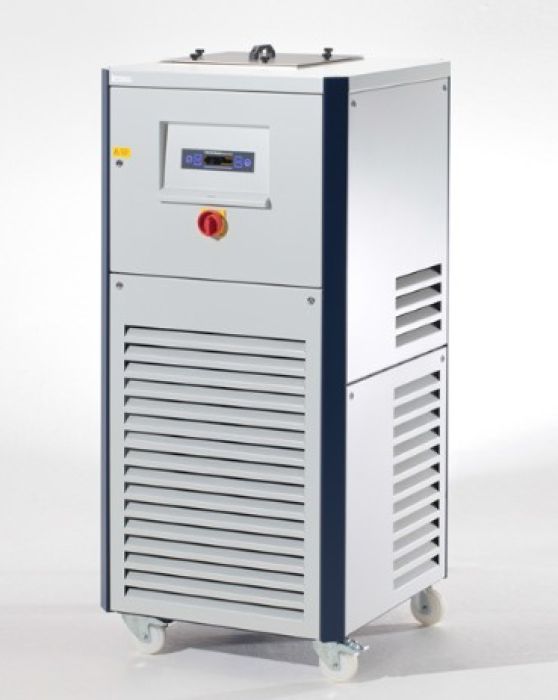

Van der Heijden 221-A-B400 chiller 3.900 Watt 16-22°C
Art.Nr.
L1711-100462
Van der Heijden 221-A-B400 chiller 3.900 Watt 16-22°C
Art.Nr.
L1711-100462
Luchtgekoelde chiller
Koelvermogen bij 20°C: 3.900 Watt
Temperatuurbereik 16-22°C
Pompvermogen 27 ltr/min bij 4,5 bar
Tankinhoud 100 liter
Kogelkraan 1/2""
Afmetingen (lxbxh) 680 x 730 x 1520 mm
Koelmiddel R 134 a
Voltage 400V/50Hz/3Ph
Gewicht 181 kg
Koelvermogen bij 20°C: 3.900 Watt
Temperatuurbereik 16-22°C
Pompvermogen 27 ltr/min bij 4,5 bar
Tankinhoud 100 liter
Kogelkraan 1/2""
Afmetingen (lxbxh) 680 x 730 x 1520 mm
Koelmiddel R 134 a
Voltage 400V/50Hz/3Ph
Gewicht 181 kg
| Merk | Van der Heijden |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
A range of more powerful cooling units from 3.2kW to 6kW, these models of cooling unit are also mobile units with plug-in connections. For reducing the operating cycles per hour the tank size is 100 litres. The containers are easy to fill thanks to the large screw cover filling holes on the top of each cooling unit. Evaporation rates are very low.
Since the heat emitted from units of this size can be very considerable (warming of more than 40% to the surrounding area), these units are frequently installed outside, in technical areas or even in large fields. The amortisation times are relatively short since the KÜHLMOBIL saves significant amounts of water per year. All the variants are also possible on these versions.
More powerful aircooled KÜHLMOBIL units are available up to 45kW, please enquire The chiller can be supplied as an air or water cooled version. Other temperature ranges are available. Many other options and accessories are available, please see the accessories and options section.
Application examples
Features and advantages
