Van der Heijden VAR vacuummeter analoog met regelaar
Art.Nr.
L171004

Van der Heijden VAR vacuummeter analoog met regelaar

Art.Nr.
L171004
Met ingebouwde regelaar Meetbereik 1020-0 mbar Afmetingen (lxdxh) 80 x 80 x 150 mm
Bekijk alle specificaties
Specificaties
Specificaties
Merk Van der Heijden
Afscheider zuigzijde Nee
Condenser uitlaat Nee
Productbeschrijving

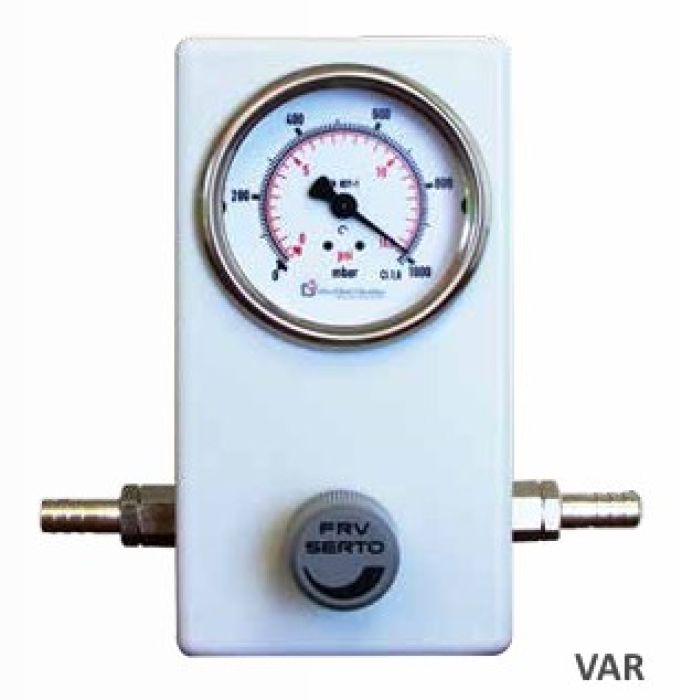

Van der Heijden VAR vacuümmeter analoog met regelaar

  • Met ingebouwde regelaar
  • Meetbereik 1020-0 mbar
  • Afmetingen (lxdxh) 80 x 80 x 150 mm

Worrying about mercury pressure gauge?

A Bennert pressure gauge has the characteristic of always breaking when you have a mishap with it. You then end up down on all fours trying to collect all the mercury that has been dispersed. We have long time ago solved this by developing a vacuum device that contains NO MERCURY. This device is serially switched with an electric vacuum pump (oil or diaphragm pump). This vacuum is displayed in mbar (no more conversion necessary)

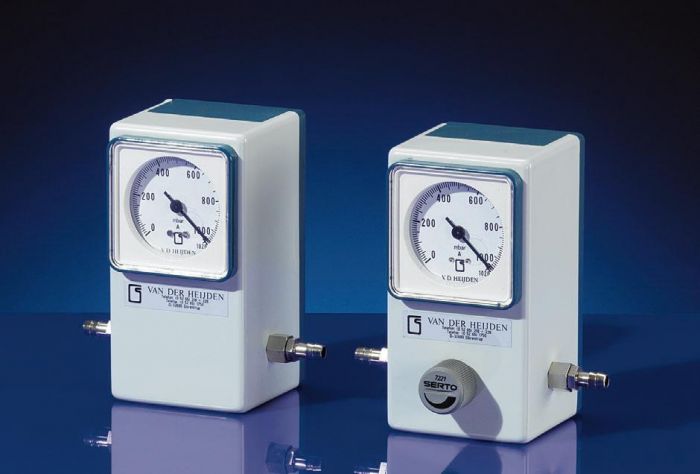

Two barrel clamps are attached to the back of this devioce so that the device can be quickly clamped to a supporting wall. This device is also available with an INTEGRATED REGULATOR so that you can set your own vacuum levels (model VAR).

The vacuum is regulated with a regulator button on the vacuum line, which maintains the pre-set vacuum level. The precise vacuum, without conversion, is displayed by a vacuum measurementdevice without any hysteresis problems.

Technical data

Technical Data VAR/VAC
Dimensions (W x D x H) 80 x 80 x 150 mm
Meter 72 x 72 mm
Reading 1020 - 0 mbar
Connections 8 mm nickeled
