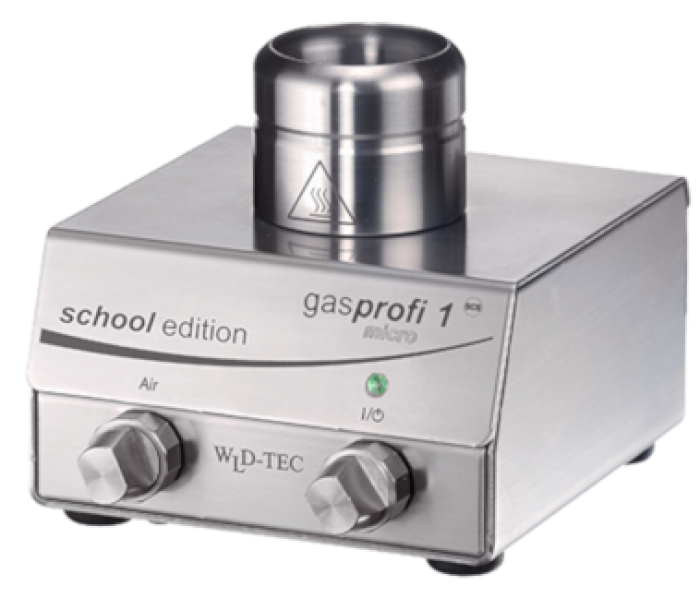

WLD-TEC Gasprofi 1 SCS Micro School edition gasbrander
Art.Nr.
L2206.007.000
WLD-TEC Gasprofi 1 SCS Micro School edition gasbrander
Art.Nr.
L2206.007.000
Klein en veilig
Te bedienen met veilige knopfunctie
Afmetingen (bxhxd) 85 x 49 x 86 mm
| Merk | WLD-tec |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
WLD-TEC Gasprofi 1 SCS Micro School edition gasbrander
The gasprofi 1 micro school edition safety burner meets maximum safety standards for working with flames. The gasprofi series is complimented by precisely coordinated accessories. The different gas cartridge safety adapters provides independence from stationary gas supplies.
| The range: gasprofi 1 micro school edition with button Safety Control System (SCS) Removable and decomposable burner head Nozzles for natural gas and propane / butane gas Tilt mechanism, right / left Turbo flame Wrench 17 mm for gas connection Screwdriver for burner head and cover of burner shaft Tubing connector with swivel nut Switching power supply (global) Instruction manual and 2-year warranty Technical Data: Technology Microprocessor Programs Button: Foot pedal: Safety features with gas safety cut off: Gas supply and consumption Gas connection: Gas types: Connected load: Continuous cartridge operation: Temperatures Flame temperature: Temperature threshold level: Electrical Power consumption: Switching power supply: Mechanical Casing and operating controls: Burner head: Cover of burner shaft: Measurements (w x h x d): Weight: Licenses DIN-DVGW Reg.-No.: CE: EEC guidelines: |
Start-Stop with timer, 60 min Standard (flame during pressed foot pedal, foot pedal optional) ignition and flame control temperature monitor burner head clogging automatic unit switch off, 4 hrs 1/4” left with gas filter II2ELL3B/P: natural gas E/LL,18 - 25 mbar liquid gas, 20 - 50 mbar 70 g/h liquid gas CV 360 - 40 min, Express 444 - 50 min, CG 1750 - 150 min, C 206 - 170 min, CP 250 - 210 min, CV 470 - 370 min 1350 °C on liquid gas 1300 °C on natural gas (E) 1 kW liquid gas, 0.9 kW natural gas 2 VA 100 - 240 V / 50/60 Hz / max. 0.3 A 9 V DC / 1 A stainless steel / glass, UV and solvent resistant removable and decomposable, stainless steel Ø 23 mm, with drains 95 x 49 x 86 mm 700 g NG-2211AS0167 EN 61326-1, EN61010-1 2004/108EC, 73/23/EWG (EEC) |
