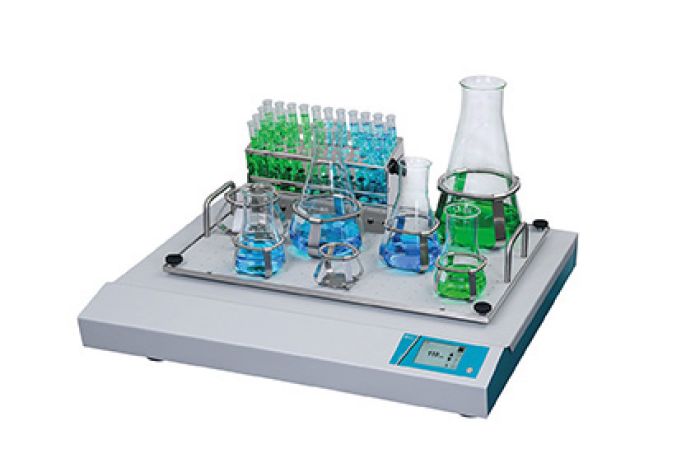

Edmund Bühler SM30B control horizontale schudder 30mm 30kg

Art.Nr.

L1996102000

Horizontale schudbeweging, amplitude van 30 mm

Schudder belastbaar tot 30 kg

Toerental 15 - 300 rpm

Programeerbaar middels touch display

Voltage: 230 V

Afmeting (lxbxh): 680 x 610 x 160 mm

Gewicht 33 kg

Levering zonder opzetten

Bekijk alle specificaties

Download de PDF

Specificaties

Specificaties
Merk	Edmund Bühler.
Schudbeweging	orbitaal
Schudgewicht in kg	30
Temperatuur	Kamertemperatuur
Min. RPM	15
Max. RPM	300

Productbeschrijving

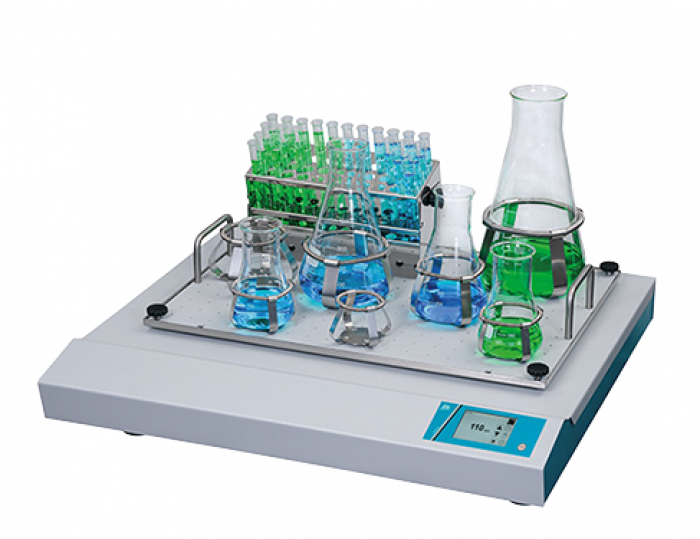

Edmund Bühler SM30B control

The horizontal shaker SM 30 B control with touch display and programmable control is ideally suited for high loads up to 30 kg and for mixing difficult media. The wide choice of rack systems ensures optimal fastening of different vessels.

Basic Equipment
Basic device with shaking plate and rubber mat, without rack system
With touch display and programmable control

Loading Capacity

Loading Capacity
Erlenmeyer flasks	100 ml	42 pieces
Erlenmeyer flasks	250 / 300 ml	20 pieces
Separating funnels	250 ml	6 pieces
Separating funnels	1000 ml	4 pieces
Test tube racks		5 pieces

Options

USB2
RS232
Control interface
Safety package
Defined stop

Details

Motion:	reciprocating (horizontal)
Shaking platform:	560 x 400 mm
Max. load:	30 kg
Shaking speed:	15 - 300 rpm, in steps of 5
Stroke:	30 mm (option: 46 or 50 mm)
Runtime:	programmable / continuous
Order No.:	6102 000
Accessory:	Rack System Combifix SM A Rack System Combifix SM B Rack System Combifix SM C Universal tray SM 2-storey top frame SM Incubator Hood TH 30

Technical specifications

Electrical supply:	230 V or 115 V, 50 / 60 Hz please indicate in case of order
Enclosure protection:	IP 21
Heat emission:	approx. 8 W
Ambient temperature:	5°C to 50°C
Relative humidity:	~ 85 %
Dimensions (w x d x h):	680 x 610 x 160 mm
Weight:	33 kg
