Edmund Bühler TH30 incubator opzet voor SM30 schudders

Art.Nr.

L1996162000

Temperatuurbereik KT +5 tot 50°C Afmetingen intern (bxhxh) 660 x 540 x 560 mm Luchtcicrulatie 240 m3/h Gewicht circa 33 kg

Bekijk alle specificaties

Download de PDF

Specificaties

Specificaties
Merk	Edmund Bühler.
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

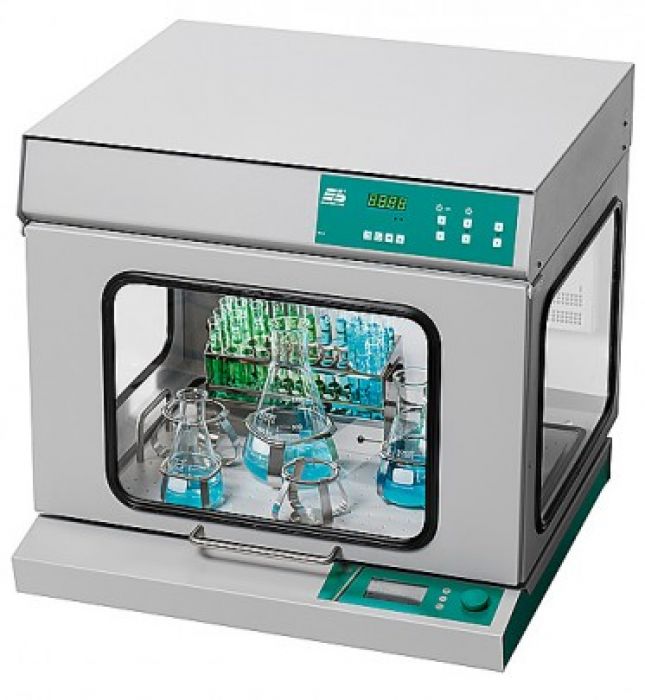

Edmund Bühler TH30 incubator opzet

Excellent system thanks to reproducible ambient temperatures and useful accessories.
Can be combined with all universal shakers or used as independent unit.

Basic Equipment
Coated metal housing with 3 windows, the front door opens upwards

Safety cut-off of UV light and stop of the shaker when the front door is opened if combined with a Bühler Universal Shaker.
Standard temperature controller 5°C above ambient to +50°C.

Details

Temperature range:	5°C above ambient to +50°C
Temperature accuracy:	+ / - 1% of the set value
Inner dimensions (w x d x h):	660 x 540 x 430 mm (height sufficient for 2000 ml Erlenmeyer flasks)
Lighting:	standard light 15 W / UV light 15 W
Order No.:	6162 000
Accessory:	Shelf TH 30 2-storey top frame SM / TH

Technical specifications

Temperature sensor:	PT 100
Air circulation:	240 m3/h
Electrical supply:	230 V, 50 / 60 H 115 V version on request
Dimensions (w x d x h):	680 x 610 x 560 mm
Weight:	33 kg
