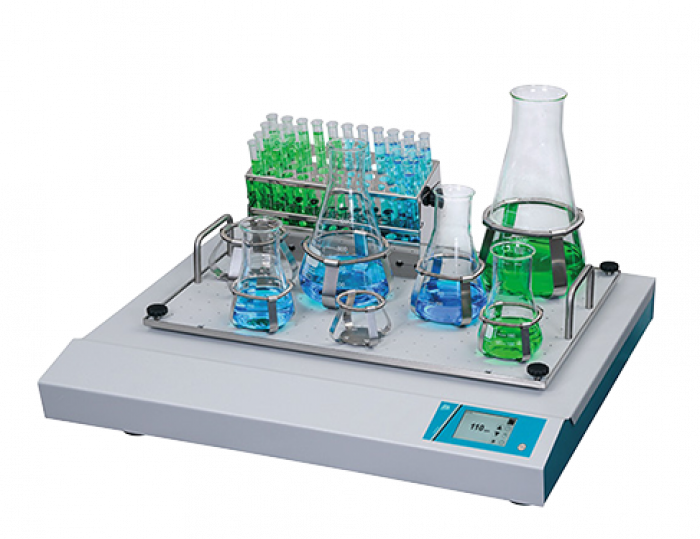

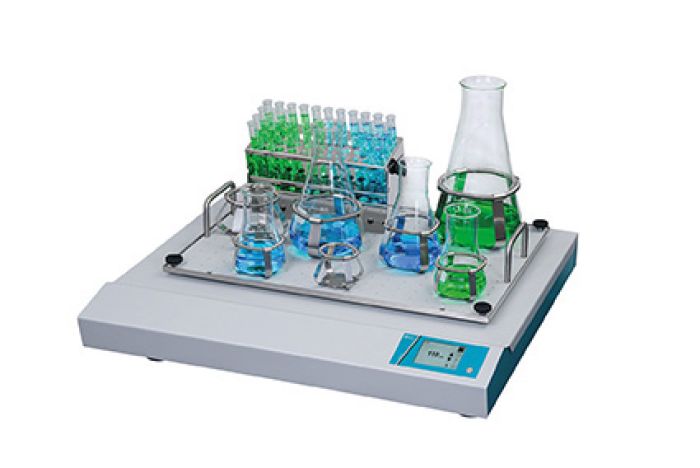

Edmund Bühler SM30C Control orbit/horiz schudder 26mm 30kg

Art.Nr.

L1996104000

Orbitaal of horizontaal schudbeweging, amplitude van 26 mm

Schudder belastbaar tot 30 kg

Toerental 15 - 300 rpm

Progameerbaar middels Touch display

Voltage: 230 V

Afmeting (lxbxh): 680 x 610 x 160 mm

Tijd instelbaar tot 120 minuten of continue

Gewicht 33 kg

Levering zonder opzetten

Bekijk alle specificaties

Download de PDF

Specificaties

Specificaties
Merk	Edmund Bühler.
Schudbeweging	Orbitaal en Horizontaal
Schudgewicht in kg	30
Temperatuur	Kamertemperatuur
Min. RPM	15
Max. RPM	300

Productbeschrijving

Edmund Bühler SM30C control

The shaking motion of the laboratory shaker SM 30 C control can be switched from orbital to horizontal. This guarantees flexibility for different applications with one device. The universal shaker is ideally suited for high loads up to 30 kg and for mixing difficult media. The wide choice of rack systems ensures optimal fastening of different vessels.

Basic Equipment
Basic device with shaking plate and rubber mat, without rack system
With touch display and programmable control

Loading Capacity

Erlenmeyer flasks 100 ml 42 pieces
Erlenmeyer flasks 250 ml 20 pieces
Separating funnels 250 ml 6 pieces
Separating funnels 1000 ml 4 pieces
Test tube racks 5 pieces

Options

USB2
RS232
Control interface
Safety package
Defined stop

Details

Motion:	can be switched from orbital to reciprocating
Shaking platform:	560 x 400 mm
Max. load:	30 kg
Shaking speed:	15 - 300 rpm, steplessly adjustable
Stroke:	26 mm
Runtime:	programmable / continuous
Order No:	6104 000
Accessory:	Rack System Combifix SM A Rack System Combifix SM B Rack System Combifix SM C Universal tray SM 2-storey top frame SM Incubator Hood TH 30

Technical specifications

Electrical supply:	230 V or 115 V, 50 / 60 Hz please indicate in case of order
Enclosure protection:	IP 21
Heat emission:	approx. 20 - 30 W
Ambient temperature:	5°C to 50°C
Relative humidity:	~ 85 %
Dimensions (w x d x h):	680 x 610 x 160 mm
Weight:	33 kg
