IKA RV3 VC rotatiefilmverdamper gecoat glaswerk

IKA RV3 VC rotatiefilmverdamper gecoat glaswerk

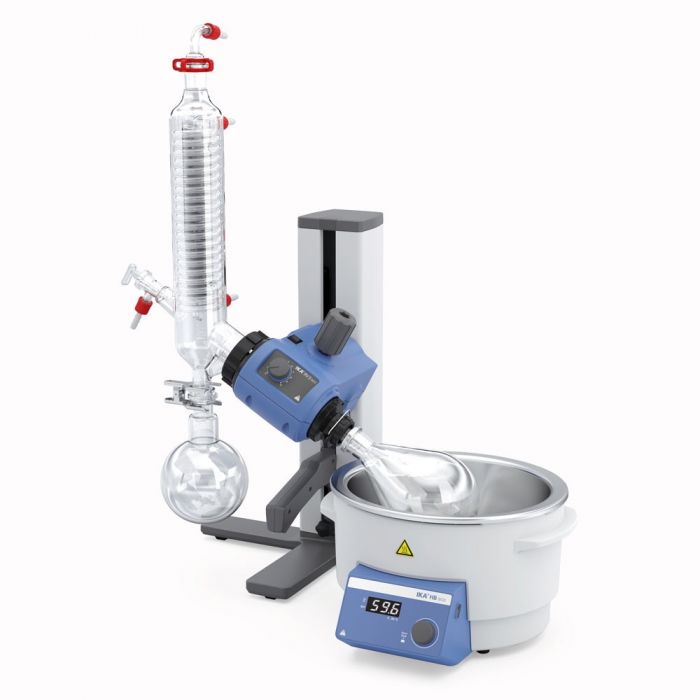

The new RV 3 Rotary Evaporator is the ideal entry-level model of the IKA rotary evaporator portfolio. It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction.

• New: 4 l heating bath for up to 99°C
• water heating bath with digital temperature display and carrying handles
• mechanical lift end-point safety stop
• locking mechanism: red indicator shows unlocked position of the vapor tube
• manual lift for precise positioning of the glassware
• adjustable immersion angle
• single-handed manual lift handling, suitable for left and tight-handed operators
• stepless speed setting with dial control and speed display
• speed range: 5 - 300 min-1
• low device voltage (24V) ensures user safety
• flask clamping mechanism with integrated push-off function for easy exchange of evaporation flasks
• high-efficiency condenser with 1500 cm² cooling surface - low space requirements
• compatible with the entire range of IKA RV 10 glassware

Technical data

• Depth: 330mm
• Speed max.: 300rpm
• Width: 440mm
• Speed min.: 20rpm
• Speed tolerance set rotation speed < 100rpm: 1±rpm
• Speed tolerance set rotation speed > 100rpm: 1±%
• Power input: 75W
• Weight: 8kg
• Height: 530mm
• Stroke: 150mm
• Frequency: 50/60Hz
• Voltage: 100 - 240V
• Protection class according to DIN EN 60529: IP 20
• USB interface: no
• Analog output: no
• RS 232 interface: no
• Reversible direction of rotation : no
• Lift: manual Permissible relative humidity:80%
• Permissible ambient temperature max.:40°C
• Permissible ambient temperature min.:5°C Timer: no
