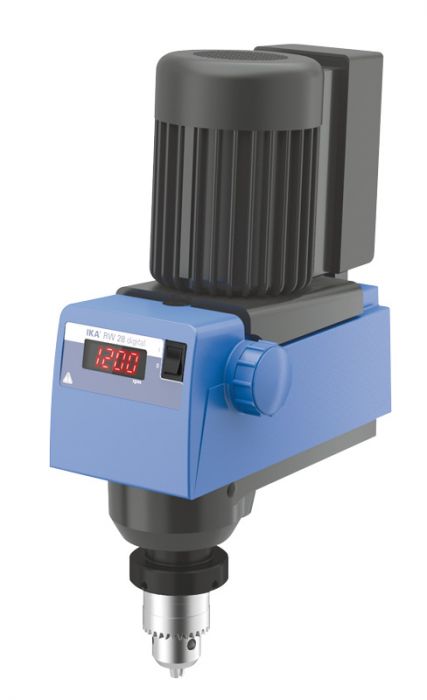

IKA RW28 digital bovenroerder 80 liter 50.000 mPas
Art.Nr.
L035040000
IKA RW28 digital bovenroerder 80 liter 50.000 mPas
Art.Nr.
L035040000
Mechanische uitvoering met digitaal display
Geschikt voor volumes tot 80 liter (water)
En viscositeiten tot maximaal 50.000 mPas
Toerental: 60-1400 rpm
Afmeting (lxbxh): 123 x 364 x 252 mm
Gewicht: 7,5 kg
Levering zonder roerbladen
Geschikt voor volumes tot 80 liter (water)
En viscositeiten tot maximaal 50.000 mPas
Toerental: 60-1400 rpm
Afmeting (lxbxh): 123 x 364 x 252 mm
Gewicht: 7,5 kg
Levering zonder roerbladen
- IKA RW 28 basic
| Merk | IKA |
|---|---|
| Viscositeit - mPas | 50.000 |
| Volume | 80 liter |
IKA RW 28 digital en RW 28 digital package
- opvolger van IKA RW 28 basic
- robuuste bovenroerder voor het mengen van vloeistoffen met een hoge viscositeit en volume tot 80 liter (H2O)
- instelling van de roersnelheid vindt plaatst door middel van een digitaal dispaly
- Toerental: 60 - 1680 rpm
- Voltage: 230 V
- Diameter koppeling roerbladen: 0.5 – 10 mm
- Gewicht: 7,4 kg
Extra informatie van IKA website
Powerful, mechanically controlled laboratory stirrer designed for highly viscous applications for quantities up to 80 l (H2O). It is suitable for intensive mixing for use in laboratories and pilot plants. The stirrer comes equipped with a protection for overheating of the motor by means of self-locking temperature limiter. Additionally, to secure bowls, a stirring shaft protection and clamping fixture are optionally available.
- Digital speed display
- Infinitely adjustable speed in two speed ranges
- Push-through agitator shafts
- Overload protection
- Error code display
- Robust, ergonomic design
- Quiet operation
- With constant power-drive
Technical Data
| Stirring quantity max. (H2O) | 80 l |
| Motor rating input | 220 W |
| Motor rating output | 90 W |
| Speed display | LED |
| Speed range | 60 - 1400 rpm |
| Viscosity max. | 50000 mPas |
| Output max. at stirring shaft | 90 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 900 Ncm |
| Torque max. at stirring shaft at 60 1/min (overload) | 1144 Ncm |
| Torque max. at stirring shaft at 100 1/min | 900 Ncm |
| Torque max. at stirring shaft at 1.000 1/min | 86 Ncm |
| torque I max. | 900 Ncm |
| torque II max. | 300 Ncm |
| Speed range I (50 Hz) | 60 - 400 rpm |
| Speed range II (50 Hz) | 240 - 1400 rpm |
| Speed range I (60 Hz) | 72 - 480 rpm |
| Speed range II (60 Hz) | 288 - 1680 rpm |
| Speed control | stepless |
| Setting accuracy speed | 1 ±rpm |
| deviation of speed measurement | 10 ±rpm |
| Stirring element fastening | chuck |
| Chuck range min. diameter | 1 mm |
| Chuck range max. diameter | 10 mm |
| Hollow shaft, inner diameter | 10.5 mm |
| Hollow shaft (push-through - when stopped) | yes |
| Fastening on stand | extension arm |
| Extension arm diameter | 16 mm |
| Extension arm length | 145 mm |
| Torque display | no |
| Nominal torque | 9 Nm |
| housing material | alu-cast coating / thermoplastic polymer |
| clean room qualified | no |
| explosion proofed | no |
| Noise without element | 62.5 dB(A) |
| Dimensions (W x H x D) | 123 x 364 x 252 mm |
| Weight | 7.5 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 40 |
| RS 232 interface | no |
| USB interface | no |
| Analog output | no |
| Voltage | 220 - 240/115/100 V |
| Frequency | 50/60 Hz |
| Power input | 220 W |
