IKA STARVISC 200-2.5 roerder & viscometer 100l 100.000 mPas
Art.Nr.
L035003604
IKA STARVISC 200-2.5 roerder & viscometer 100l 100.000 mPas
Art.Nr.
L035003604
Bovenroerder met viscositeitsmeting
Met afneembare afstandsbediening en digitaal TFT-scherm
Controle en documentatie van alle parameters van de mixer zijn mogelijk via de RS232- of USB-poort
Aansluiting temperatuursensor mogelijk
Maximaal 100 liter (water)
Viscositeit maximaal 100.000 mPas
Toerentalbereik 1: 6 tot 400 rpm
Toerentalbereik 2: 30 tot 2.000 rpm
Doorsteekbare roerwerk assen
Afmetingen (lxbxh) 91 x 297 x 231 mm
Gewicht 5,9 kg
Statief en roerbladen optioneel
| Merk | IKA |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |

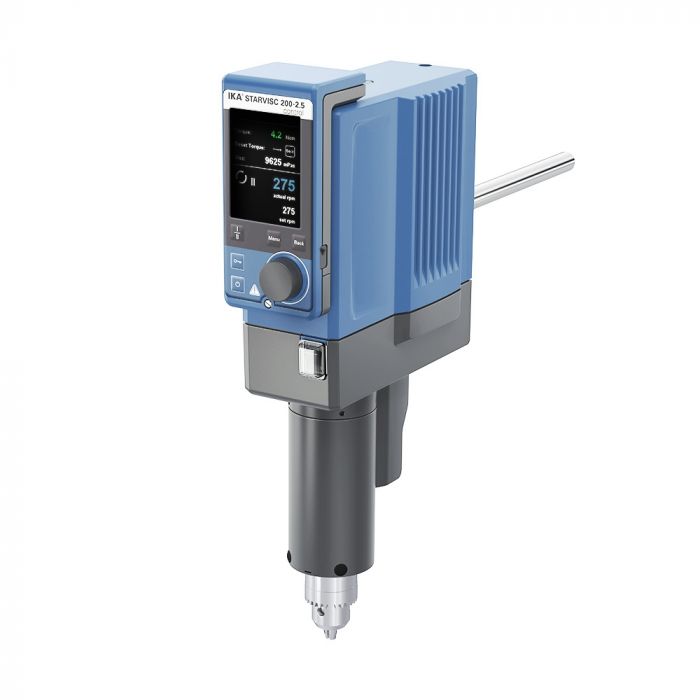

IKA STARVISC 200-2.5 bovenroerder & viscositeitsmeter
Measure viscosity and display it, even during product development: the new IKA STARVISC 200-2.5 control torque-measuring stirrer makes it possible. The result can be read in real-time on the display. STARVISC therefore has a broad range of applications. This is particularly helpful during product development: STARVISC already clearly indicates while running research programmes as to whether the stirred substance can be used as desired.
High-precision measurement
STARVISC measures in a highly precise way and does this even during the manufacturing process. Samples no longer have to be taken separately.
Viscosity calculation
A viscosity calculation can be carried out immediately via a userfriendly menu.
Removable control unit
The modern TFT display is removable. This means that STARVISC can also be controlled from a safe distance.
Powerful stirrer
Even highly viscous substances can be intensively stirred using the powerful STARVISC stirrer.
Technical data
| Stirring quantity max. per stirring position (H2O) | 100 l |
| Motor rating input | 130 W |
| Motor rating output | 84 W |
| Motor principle | Brushless DC |
| Speed display | TFT |
| Speed range | 0/6 - 2000 rpm |
| Intermittent operation | yes |
| Viscosity max. | 100000 mPas |
| Output max. at stirring shaft | 84 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 200 Ncm |
| torque I max. | 200 Ncm |
| torque II max. | 40 Ncm |
| Speed range I (50 Hz) | 6 - 400 rpm |
| Speed range II (50 Hz) | 30 - 2000 rpm |
| Speed range I (60 Hz) | 6 - 400 rpm |
| Speed range II (60 Hz) | 30 - 2000 rpm |
| Speed control | stepless |
| Setting accuracy speed | 1 ±rpm |
| Deviation of speed measurement n > 300rpm | 1 ±% |
| Deviation of speed measurement n < 300rpm | 3 ±rpm |
| Stirring element fastening | chuck |
| Connection for ext. temperature sensor | PT1000 |
| Temperature display | yes |
| Plug-in coupling (Ø) | 10 mm |
| Chuck range diameter | 0.5 - 10 mm |
| Hollow shaft, inner diameter | 10.3 mm |
| Hollow shaft (push-through - when stopped) | yes |
| Fastening on stand | extension arm |
| Extension arm diameter | 16 mm |
| Extension arm length | 220 mm |
| Torque display | yes |
| Nominal torque | 2 Nm |
| Torque measurement | trend |
| deviation of torque measurement I | 2.5 ±Ncm |
| deviation of torque measurement II | 2.5 ±Ncm |
| Timer | yes |
| Timer display | TFT |
| Time setting range | 1 - 6000 min |
| Temperature measuring range | -10 - +350 °C |
| Temperature measurement resolution | 0.1 K |
| Accuracy of temperature measurement | ±0.5 + tolerance PT1000 (DIN IEC 751 Class A) K |
| Limit deviation temperature sensor | ≤ ± (0.15 + 0.002xITI) K |
| housing material | alu-cast coating / thermoplastic polymer |
| communication distance (depend onbuilding) max. | 150 m |
| Dimensions (W x H x D) | 91 x 395 x 231 mm |
| Weight | 5.9 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 40 |
| USB interface | yes |
| RS 232 interface | yes |
| Voltage | 230 / 100 - 115 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 130 W |
