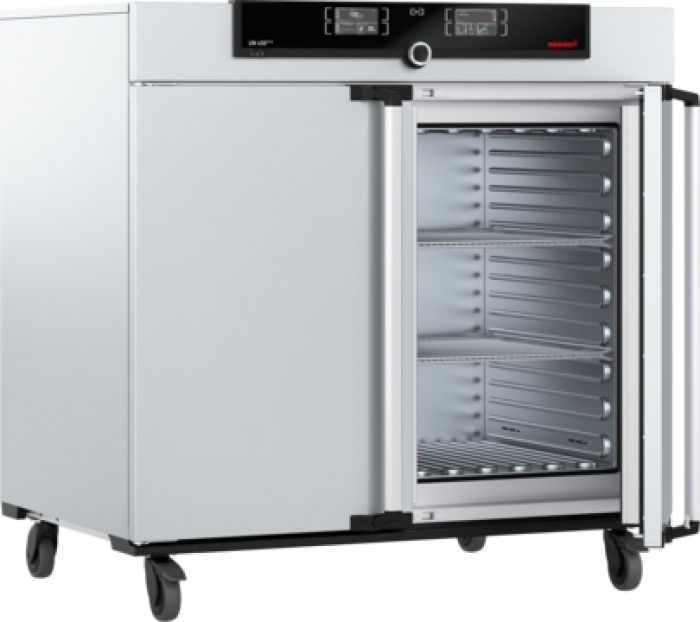

Memmert UF450plus droogstoof met ventilator 449 liter

Productbeschrijving

Memmert UF 450plus droogstoof - drying oven

Nieuwe bediening Single en Twin display en software Atmo Control (zie ook video onderaan deze site)
De plus modellen zijn voorzien van het Twin display en bieden de mogelijkheid voor uitgebreide programmering en registratie
Nieuwe deurklinken zijn makkelijk te openen ook met 1 hand, elleboog of knie

forced air circulation by quite air turbine, adjustable in 10 % steps for each segment individually
adjustment of pre-heated fresh air admixture by air flap control in 10 % steps for each segment individually
vent connection with restrictor flap
adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays
self-diagnostics for fault analysis
2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value
Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
parameters adjustable on ControlCOCKPIT: temperature (Celsius or Fahrenheit), fan speed, air flap position, programme time, time zones, summertime/wintertime
SetpointWAIT function - the process time does not start until the set temperature is reached
AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
Setting of languages on ControlCOCKPIT: German/English/Spanish/French
resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED)
calibration facility directly at ControlCOCKPIT for three freely selectable temperature values
programme stored in case of power failure
incl. works calibration certificate for +160°C

with audible and visual alarm
overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display
additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature

w x h x d: 1040 x 720 x 600 mm, 449 l
easy-to-clean interior,made of stainless steel,reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
2 stainless steel grids
Max. loading of chamber: 300 kg
