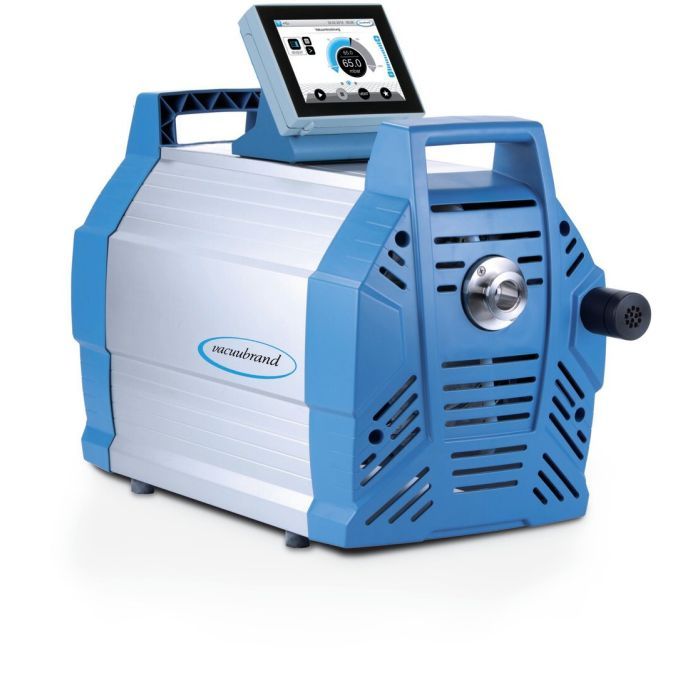

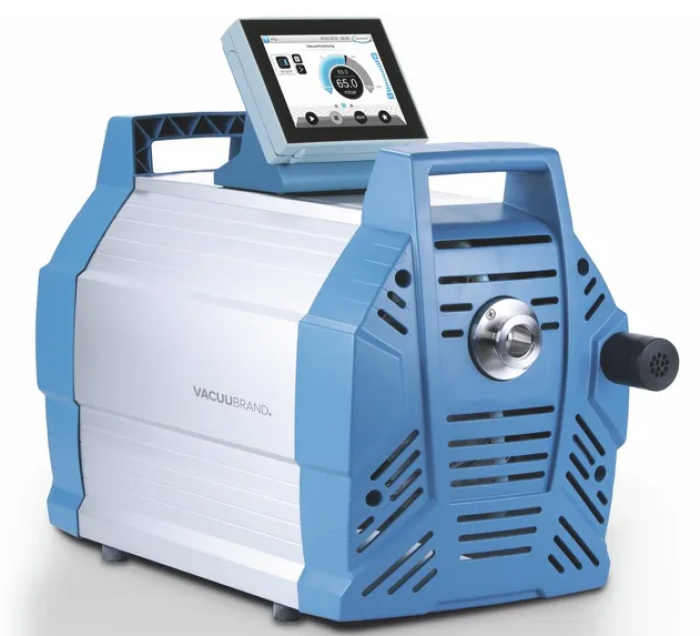

Vacuubrand MD12 VARIO select 1,5mbar 16 m3/h
Art.Nr.
L0625743150

Vacuubrand MD12 VARIO select 1,5mbar 16 m3/h

Art.Nr.
L0625743150

Niet chemisch bestendig, drietrapspomp, 8 cylinders
Kompleet met Vacuu-Select vacuümcontroller
Eindvacuüm: 1,5 mbar
Pompsnelheid 16 m3/h
Vermogen (max): 1 kW
Afmetingen (lxbxh): 552 x 260 x 450 mm
Gewicht: 28,3 kg
Aansluiting inlaat: klein flens KF DN 25
Aansluiting uitlaat: Geluidsdemper G1/2"

Bekijk alle specificaties
Opvolger van...
Specificaties
Specificaties
Merk Vacuubrand
Zuigvermogen in m3/h 16
Eindvacuüm mbar 1,50
Uitvoering pomp niet chemisch bestendig
Vacuümregeling digitaal
Afscheider zuigzijde Nee
Condenser uitlaat Nee
Productbeschrijving

This three-stage diaphragm pump is an powerful solution for continuous, oil-free pumping of non-corrosive gases to a vacuum level as deep as 1.5 mbar. With its high pumping speed, this pump is an excellent option for higher gas load applications or rapid pump down of vacuum chambers. All wetted parts are made of aluminum, stainless steel and carefully selected plastics suitable for a wide range of applications with non-corrosive gases.


The MD 12 VARIO select automatically adapts its motor speed to hold the desired vacuum level. That also means the pump is whisper-quiet and generates ultra-low vibrations, and has high leak tightness. The highly flexible fabric-reinforced double FKM diaphragm is ideal for extended operating life. The VARIO design includes the variable speed pump and the VACUUĀ·SELECT vacuum controller with an external gauge head. The demand-responsive motor speed control on VARIO models further extends the already long lifetimes of diaphragms and valves. And oil-free operation means that there is no risk of contamination from backstreaming.


Performance features

VACUUĀ·SELECT vacuum controller with graphical user interface and predefined applications simplifies work in the laboratory

extraordinary diaphragm life for minimum operational and servicing costs

contamination-free pumping and evacuation

high pumping speed and excellent ultimate vacuum and TURBOĀ·MODE for use as backing pump for turbo pumps
