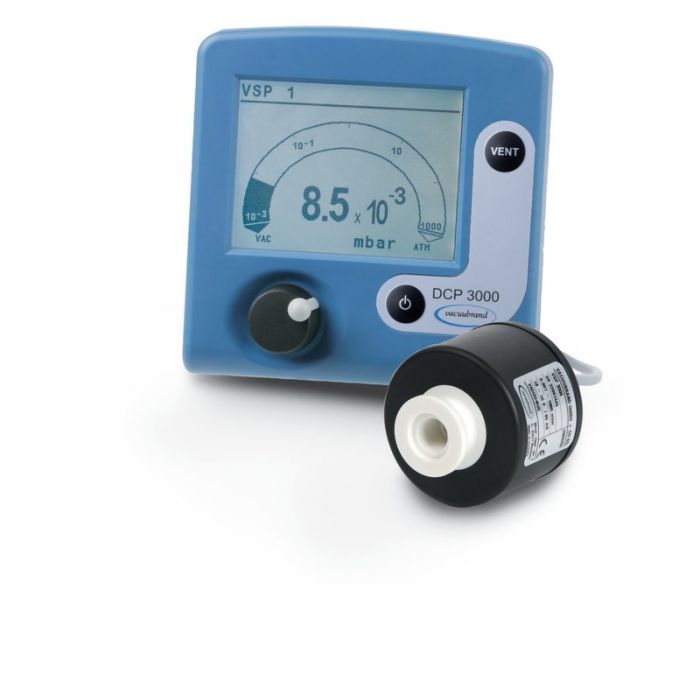

Vacuubrand vacuümmeter DCP3000 VSP3000 set 1080 - 0,001 mbar
Art.Nr.
L0620683190
Vacuubrand vacuümmeter DCP3000 VSP3000 set 1080 - 0,001 mbar
Art.Nr.
L0620683190
DCP3000 vacuümmeter met meetsensor VSP3000
Meetbereik 1080 tot 10-3 mbar
Meetonzekerheid : <+/- 15% (0,01 - 10 mbar)
Meetprincipe: pirani
Afmetingen (lxbxh): 144 x 124 x 115 mm
Gewicht: 0,44 kg
Aansluiting kleinflens DN 16
Kabellengte 2 meter tussen meter en sensor
(opvolger van VAP5 vacuümmeter)
| Merk | Vacuubrand |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
Vacuümmeter DCP3000 VSP3000
- VSP 3000 vacuum sensor is gebaseerd op thermische geleidbaarheid (Pirani)
- meetbereik : 1080 - 0,001(10 -3 )mbar.
- natte delen zijn gemaakt van chemisch resistente kunststoffen en aluminiumoxide keramiek
- veel betere chemische weerstand en robuustheid dan conventionele Pirani sensoren
- de volledig automatische configuratieverenigd plug aansluitingen en kabellengtes van maximaal 30 m.
- datalogger-functie voor tot 32.000 meetwaarden.
- aansluiting tot vier VSK3000 sensoren (Atm. - 0,1 mbar) of vier VSP3000 sensoren (Atm. - 0,001 10 -3 mbar)
- spatwaterdicht, ook voor ruwe werkomstandigheden
- robuust, spatwaterdicht vacuümsensor, ook voor ruwe werkomstandigheden
The DCP 3000 is an outstanding vacuum gauge with large illuminated display. The VSP 3000 vacuum sensor is based on thermal conductivity (Pirani) and offers a wide measurement range from atmospheric pressure down to 10-3 mbar. The wetted parts are made of chemically resistant plastics (PBT, PUR) and alumina ceramics. It features a much better chemical resistance and ruggedness than conventional Pirani sensors with their fragile metallic spiral-wound filament. Simultaneous connection of up to eight vacuum sensors allows flexible measuring on the spot. The DCP 3000 communicates with external components via the VACUU·BUS® digital bus system. It is characterized by fully automatic configuration, unified plug connections and cable lengths of up to 30 m. In addition the DCP 3000 offers relative pressure measurements (VSK 3000 as reference) and a data logger feature for up to 32,000 data values.
Performance features
- up to four gauge heads VSK 3000 (Atm. - 0.1 mbar) and four VSP 3000 (Atm. - 10-3 mbar) can be simultaneously connected
- brand new rugged VSP 3000 vacuum sensor made of plastics and ceramics with high chemical resistance
- rugged, splash-water proof VSP 3000 vacuum sensor, also for rough operating conditions
- VSP 3000 with wide measurement range from atmospheric pressure to fine vacuum
- for vacuum control from atmospheric pressure down to 10-3 mbar combine the CVC 3000 vacuum controller with gauge head VSP 3000 and vacuum solenoid valves of type VV-B. Suitable complete packages for fine vacuum control are available.
Technical data
| Technical data | Unit | Set DCP 3000 + VSP 3000 |
|---|---|---|
| Vacuum sensor | VSP 3000 | |
| Cable length of vacuum sensor | m | 2 |
| Upper measuring limit | mbar/torr | 1 x 103 / 7.5 x 102 |
| Lower measuring limit | mbar/torr | 1 x 10-3 / 1 x 10-3 |
| Measurement principle | Thermal conductivity (Pirani), chemically resistant plastics / ceramics | |
| Accuracy of measurement | +- 15% of indicated value in the range 0.01-10 mbar/hPa/torr | |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. media temp. for continuous operation / short times | °C | 40 / 80 |
| Material of outer housing | Robust plastic housing with good chemical resistance | |
| Degree of protection | IP 20 | |
| Degree of protection of front side (also built-in version) | IP 42 | |
| Max. power for VACUU·BUS® (24V DC) | 4 A | |
| Cable length of external power supply | m | 2 |
| Interface | RS 232C | |
| Dimensions (L x W x H) | mm | 144 x 124 x 114 |
| Weight | kg | 0.44 |
| Items supplied | Vacuum gauge with external vacuum sensor VSP 3000, ready for operation, with wall-plug power supply and manual. | |
| Accessories | Stainless steel tubing KF DN 16 (1000 mm: 673336) DAkkS calibration with first delivery (900214) DAkkS recalibration (900215) Vent valve VBM-B (674217) Vacuum sensor VSK 3000 (636657) Vacuum sensor VSP 3000 (636163) Vacuum sensor MPT 200 (683177) Rubber vacuum tubing DN 6 mm (686000) Rubber vacuum tubing DN 8 mm (686001) |
